Matrix: Meszaros/stormg2-8
Description: Deterministic equiv. of stochastic linear programming problem
|
| (bipartite graph drawing) |
 |
 |
 |
| Matrix properties | |
| number of rows | 4,409 |
| number of columns | 11,322 |
| nonzeros | 28,553 |
| structural full rank? | no |
| structural rank | 4,393 |

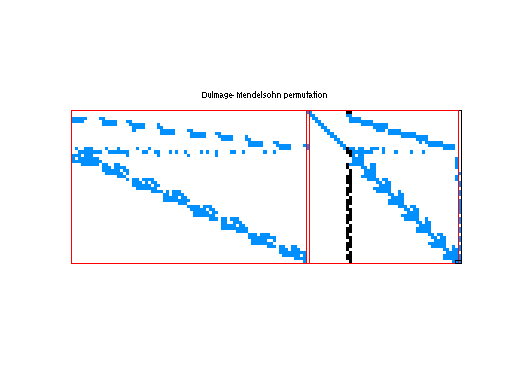

| # of blocks from dmperm | 26 |

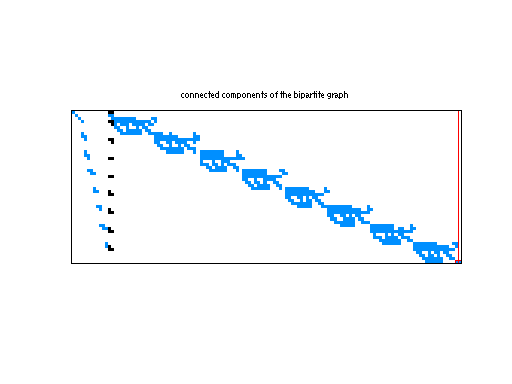

| # strongly connected comp. | 41 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 0% |
| numeric value symmetry | 0% |
| type | real |
| structure | rectangular |
| Cholesky candidate? | no |
| positive definite? | no |
| author | |
| editor | C. Meszaros |
| date | 2004 |
| kind | linear programming problem |
| 2D/3D problem? | no |
| Additional fields | size and type |
| b | full 4409-by-1 |
| c | full 11322-by-1 |
| lo | full 11322-by-1 |
| hi | full 11322-by-1 |
| z0 | full 1-by-1 |
Notes:
http://www.sztaki.hu/~meszaros/public_ftp/lptestset Converted to standard form via Resende and Veiga's mpsrd: minimize c'*x, subject to A*x=b and lo <= x <= hi
| Ordering statistics: | result |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 2,263,891 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 124,656 |

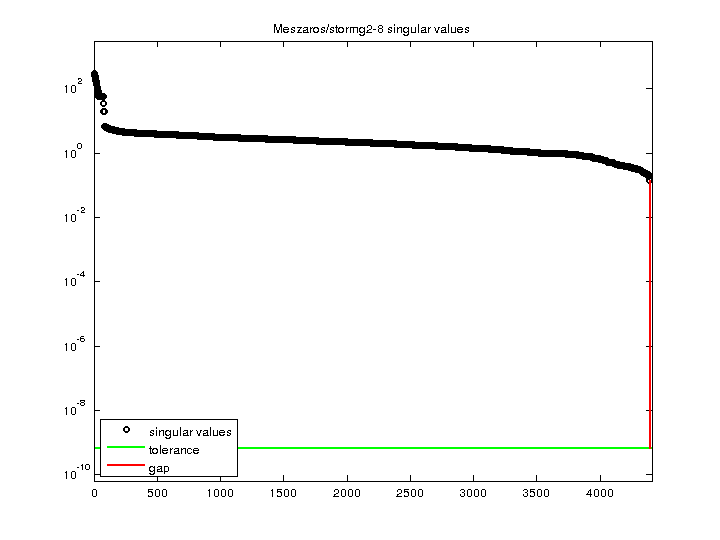

| SVD-based statistics: | |
| norm(A) | 305.398 |
| min(svd(A)) | 0 |
| cond(A) | Inf |
| rank(A) | 4,393 |
| sprank(A)-rank(A) | 0 |
| null space dimension | 16 |
| full numerical rank? | no |
| singular value gap | Inf |
| singular values (MAT file): | click here |
| SVD method used: | s = piro_band_svd (A) |
| status: | ok |
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.

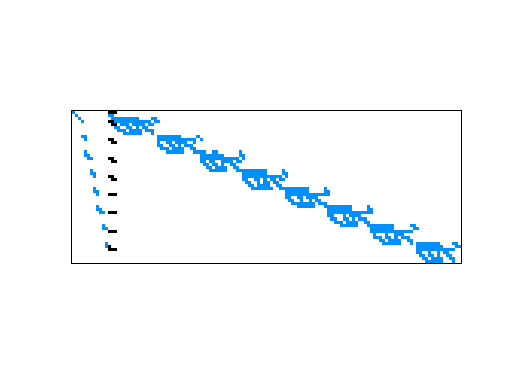

Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
