Matrix: Meszaros/stormg2-125

Description: Deterministic equiv. of stochastic linear programming problem

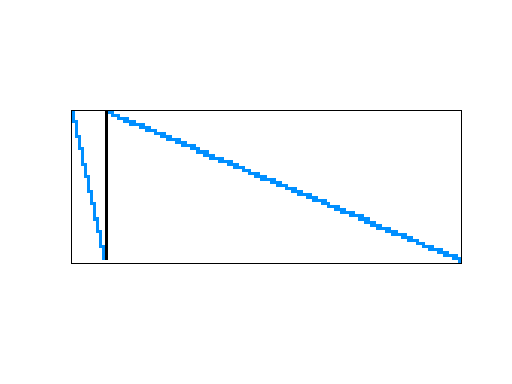

Meszaros/stormg2-125 graph
(bipartite graph drawing)

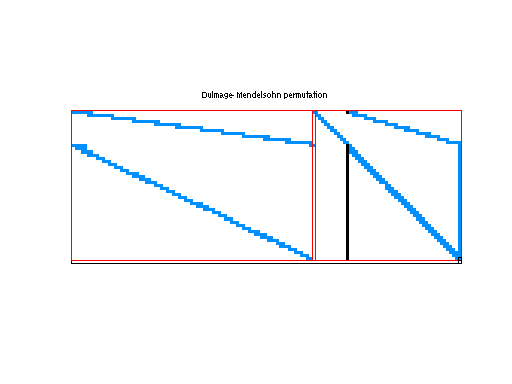

Meszaros/stormg2-125 dmperm of Meszaros/stormg2-125

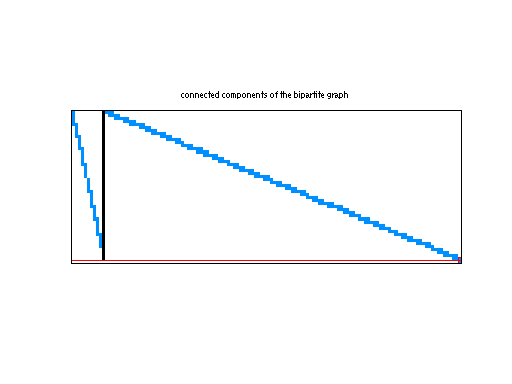

scc of Meszaros/stormg2-125

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 929 KB. Use UFget(1809) or UFget('Meszaros/stormg2-125') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows66,185
    number of columns172,431
    nonzeros433,256
    structural full rank?no
    structural rank65,935
    # of blocks from dmperm377
    # strongly connected comp.626
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 66185-by-1
    cfull 172431-by-1
    lofull 172431-by-1
    hifull 172431-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD566,810,975
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD21,585,183

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
