Matrix: Meszaros/scsd8-2r

Description: LP sequence: scsd8-2r-4, 8, 8b, 16, 27, 32, 54, 64, 108, 216, 432

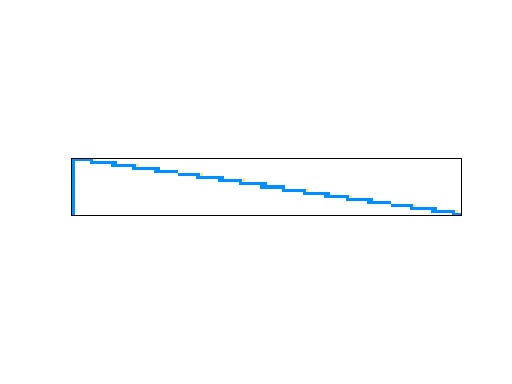

Meszaros/scsd8-2r graph
(bipartite graph drawing)


Meszaros/scsd8-2r

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 842 KB. Use UFget(1837) or UFget('Meszaros/scsd8-2r') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows8,650
    number of columns60,550
    nonzeros190,210
    structural full rank?yes
    structural rank8,650
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem sequence
    2D/3D problem?no

    Additional fieldssize and type
    Acell 11-by-1
    bcell 11-by-1
    ccell 11-by-1
    locell 11-by-1
    hicell 11-by-1
    z0cell 11-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi
    Determinisitic equivalent of stochastic LP


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD186,233,631
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD7,517,623

    SVD-based statistics:
    norm(A)59.409
    min(svd(A))0.0629111
    cond(A)944.332
    rank(A)8,650
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

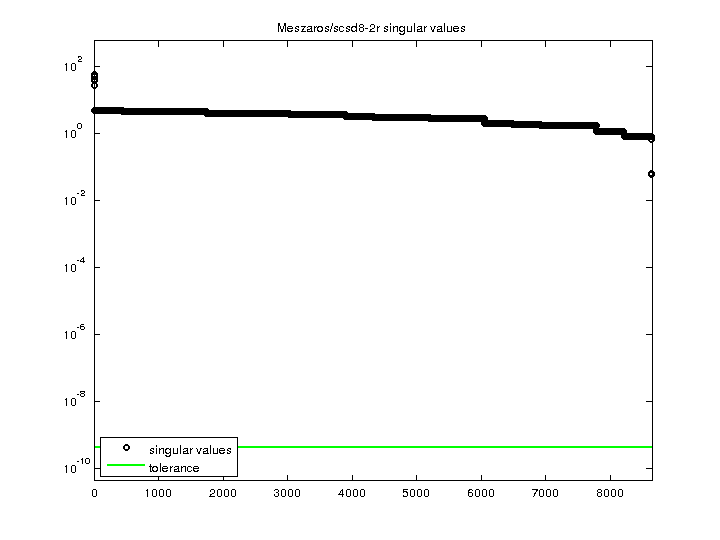

    Meszaros/scsd8-2r svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
