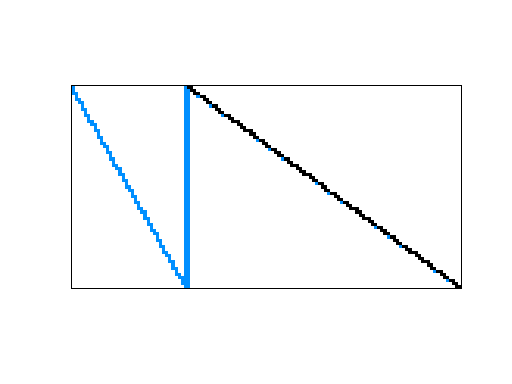

Matrix: Meszaros/scrs8-2c
Description: LP sequence: scrs8-2c-4, 8, 16, 32, 64
(bipartite graph drawing) |
Matrix properties | |
number of rows | 1,820 |
number of columns | 3,499 |
nonzeros | 7,367 |
structural full rank? | yes |
structural rank | 1,820 |

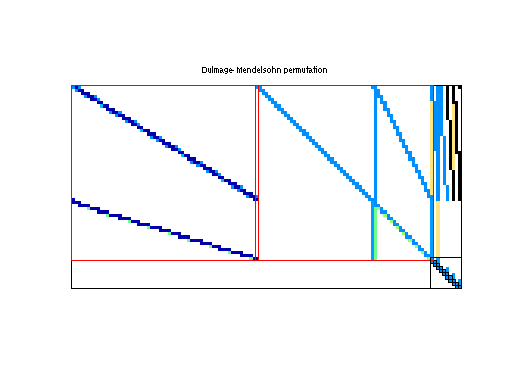

# of blocks from dmperm | 262 |
# strongly connected comp. | 1 |
explicit zero entries | 0 |
nonzero pattern symmetry | 0% |
numeric value symmetry | 0% |
type | real |
structure | rectangular |
Cholesky candidate? | no |
positive definite? | no |
author | |
editor | C. Meszaros |
date | 2004 |
kind | linear programming problem sequence |
2D/3D problem? | no |
Additional fields | size and type |
A | cell 5-by-1 |
b | cell 5-by-1 |
c | cell 5-by-1 |
lo | cell 5-by-1 |
hi | cell 5-by-1 |
z0 | cell 5-by-1 |
Notes:
http://www.sztaki.hu/~meszaros/public_ftp/lptestset Converted to standard form via Resende and Veiga's mpsrd: minimize c'*x, subject to A*x=b and lo <= x <= hi Determinisitic equivalent of stochastic LP
Ordering statistics: | result |
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 803,400 |
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 338,969 |

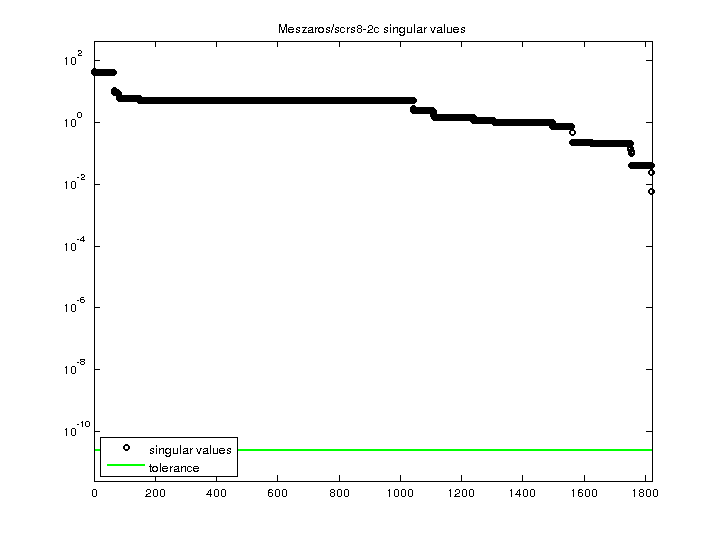

SVD-based statistics: | |
norm(A) | 43.0528 |
min(svd(A)) | 0.00590752 |
cond(A) | 7287.79 |
rank(A) | 1,820 |
sprank(A)-rank(A) | 0 |
null space dimension | 0 |
full numerical rank? | yes |
singular values (MAT file): | click here |
SVD method used: | s = svd (full (A)) ; |
status: | ok |
For a description of the statistics displayed above, click here.
