Matrix: Meszaros/scfxm1-2r

Description: LP sequence: scfxm1-2r-4, 8, 16, 27, 32, 64, 96, 128, 256

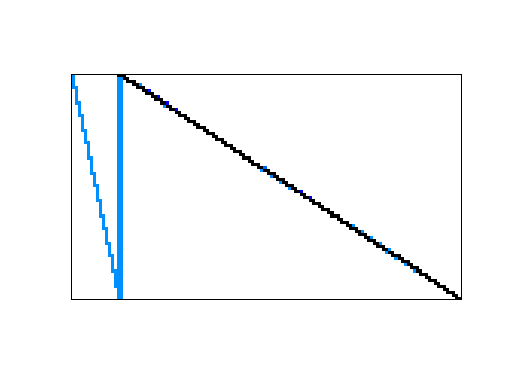

Meszaros/scfxm1-2r graph
(bipartite graph drawing)

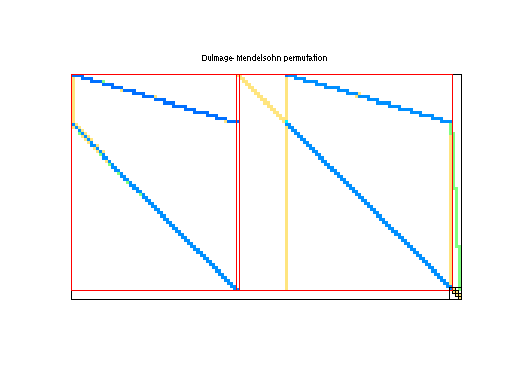

Meszaros/scfxm1-2r dmperm of Meszaros/scfxm1-2r

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(1831) or UFget('Meszaros/scfxm1-2r') in MATLAB.
  • download in Matrix Market format, file size: 3 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows37,980
    number of columns65,943
    nonzeros221,388
    structural full rank?yes
    structural rank37,980
    # of blocks from dmperm1,539
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem sequence
    2D/3D problem?no

    Additional fieldssize and type
    Acell 9-by-1
    bcell 9-by-1
    ccell 9-by-1
    locell 9-by-1
    hicell 9-by-1
    z0cell 9-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi
    Determinisitic equivalent of stochastic LP


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD51,127,671
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,105,931

    SVD-based statistics:
    norm(A)106.676
    min(svd(A))0.112277
    cond(A)950.116
    rank(A)37,980
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

    Meszaros/scfxm1-2r svd

    For a description of the statistics displayed above, click here.
