Matrix: Meszaros/plddb

Description: LP sequence: pldd000b to pldd012b

Meszaros/plddb graph
(bipartite graph drawing)

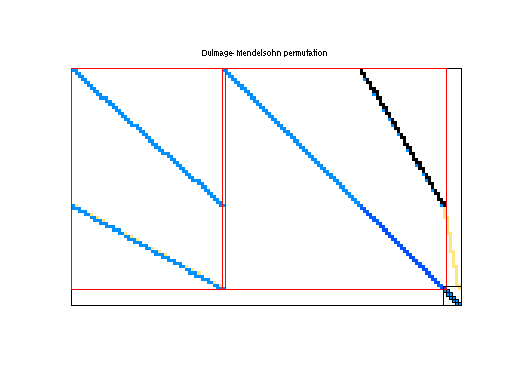

Meszaros/plddb dmperm of Meszaros/plddb
scc of Meszaros/plddb

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 385 KB. Use UFget(1822) or UFget('Meszaros/plddb') in MATLAB.
  • download in Matrix Market format, file size: 644 KB.
  • download in Rutherford/Boeing format, file size: 487 KB.

    Matrix properties
    number of rows3,069
    number of columns5,049
    nonzeros10,839
    structural full rank?yes
    structural rank3,069
    # of blocks from dmperm199
    # strongly connected comp.397
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem sequence
    2D/3D problem?no

    Additional fieldssize and type
    Acell 13-by-1
    bcell 13-by-1
    ccell 13-by-1
    locell 13-by-1
    hicell 13-by-1
    z0cell 13-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD456,555
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD20,125

    SVD-based statistics:
    norm(A)142.592
    min(svd(A))0.0116079
    cond(A)12284
    rank(A)3,069
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

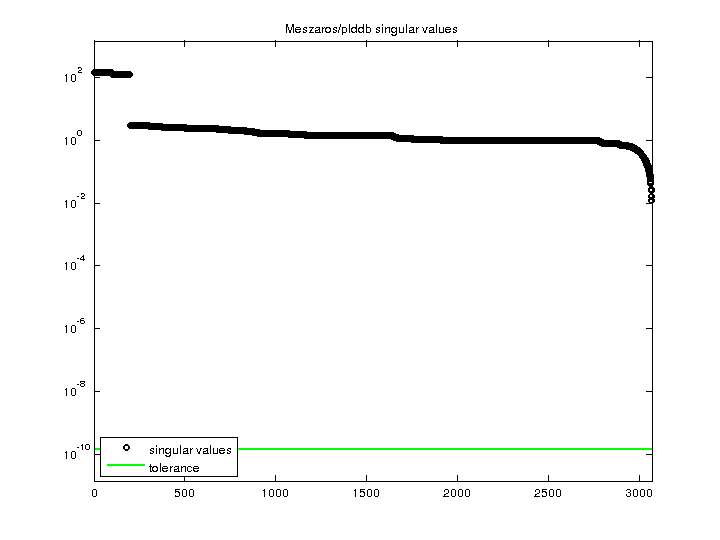

    Meszaros/plddb svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
