Matrix: Meszaros/l9

Description: linear programming problem, C. Meszaros test set

Meszaros/l9 graph
(bipartite graph drawing)


Meszaros/l9

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 7 KB. Use UFget(1717) or UFget('Meszaros/l9') in MATLAB.
  • download in Matrix Market format, file size: 16 KB.
  • download in Rutherford/Boeing format, file size: 9 KB.

    Matrix properties
    number of rows244
    number of columns1,483
    nonzeros4,659
    structural full rank?yes
    structural rank244
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 244-by-1
    cfull 1483-by-1
    lofull 1483-by-1
    hifull 1483-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD138,443
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD6,832

    SVD-based statistics:
    norm(A)5.10362
    min(svd(A))0.0218392
    cond(A)233.691
    rank(A)244
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

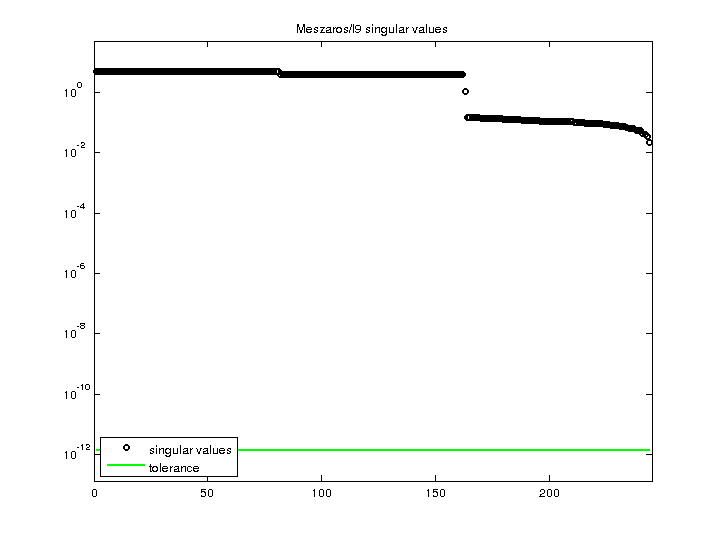

    Meszaros/l9 svd

    For a description of the statistics displayed above, click here.
