Matrix: Meszaros/gen4
Description: Problematic linear programming problem, Meszaros test set
|
| (bipartite graph drawing) |
 |
| Matrix properties | |
| number of rows | 1,537 |
| number of columns | 4,298 |
| nonzeros | 107,103 |
| structural full rank? | yes |
| structural rank | 1,537 |
| # of blocks from dmperm | 1 |
| # strongly connected comp. | 1 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 0% |
| numeric value symmetry | 0% |
| type | real |
| structure | rectangular |
| Cholesky candidate? | no |
| positive definite? | no |
| author | |
| editor | C. Meszaros |
| date | 2004 |
| kind | linear programming problem |
| 2D/3D problem? | no |
| Additional fields | size and type |
| b | full 1537-by-1 |
| c | full 4298-by-1 |
| lo | full 4298-by-1 |
| hi | full 4298-by-1 |
| z0 | full 1-by-1 |
Notes:
http://www.sztaki.hu/~meszaros/public_ftp/lptestset Converted to standard form via Resende and Veiga's mpsrd: minimize c'*x, subject to A*x=b and lo <= x <= hi
| Ordering statistics: | result |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 2,640,443 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 1,020,156 |

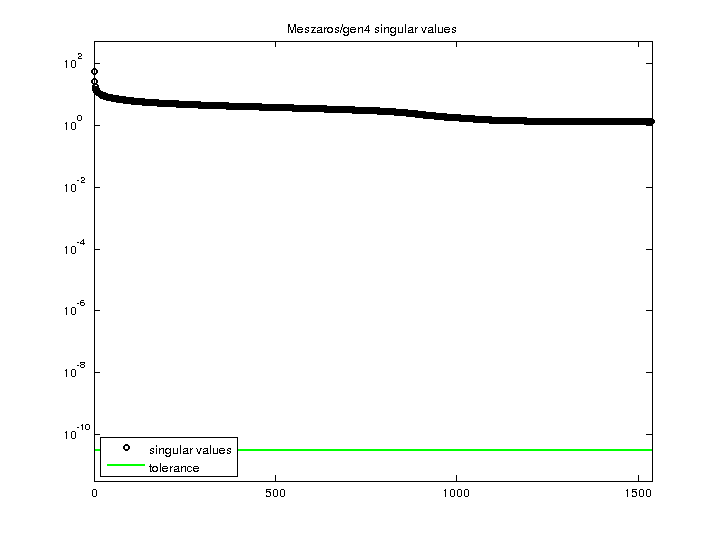

| SVD-based statistics: | |
| norm(A) | 55.4346 |
| min(svd(A)) | 1.41421 |
| cond(A) | 39.1982 |
| rank(A) | 1,537 |
| sprank(A)-rank(A) | 0 |
| null space dimension | 0 |
| full numerical rank? | yes |
| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |
For a description of the statistics displayed above, click here.
