Matrix: Meszaros/dbir2

Description: linear programming problem, C. Meszaros test set

Meszaros/dbir2 graph
(bipartite graph drawing)

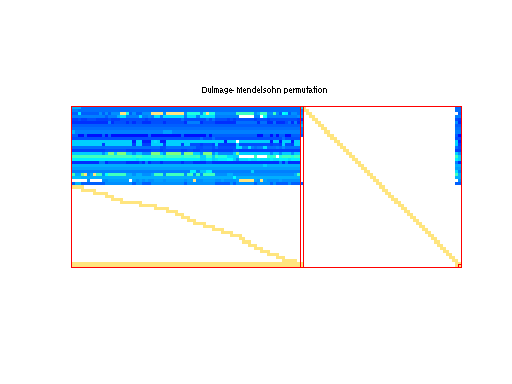

Meszaros/dbir2 dmperm of Meszaros/dbir2
scc of Meszaros/dbir2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(1706) or UFget('Meszaros/dbir2') in MATLAB.
  • download in Matrix Market format, file size: 4 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows18,906
    number of columns45,877
    nonzeros1,158,159
    structural full rank?no
    structural rank18,904
    # of blocks from dmperm29
    # strongly connected comp.2,366
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2004
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 18906-by-1
    cfull 45877-by-1
    lofull 45877-by-1
    hifull 45877-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD41,117,320
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,005,677

    SVD-based statistics:
    norm(A)2.56248e+06
    min(svd(A))0
    cond(A)Inf
    rank(A)18,904
    sprank(A)-rank(A)0
    null space dimension2
    full numerical rank?no
    singular value gapInf

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:SVD did not converge.

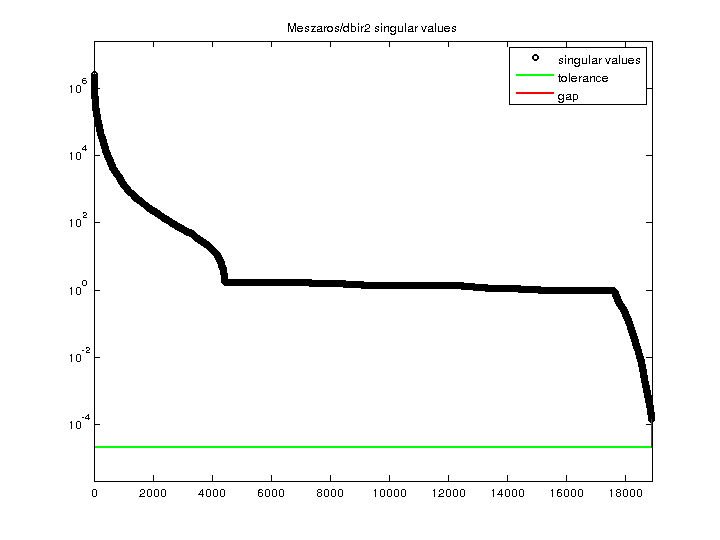

    Meszaros/dbir2 svd

    For a description of the statistics displayed above, click here.
