Matrix: Meszaros/aa03
Description: linear programming problem, C. Meszaros test set
|
| (bipartite graph drawing) |
 |
 |
| Matrix properties | |
| number of rows | 825 |
| number of columns | 8,627 |
| nonzeros | 70,806 |
| structural full rank? | no |
| structural rank | 822 |

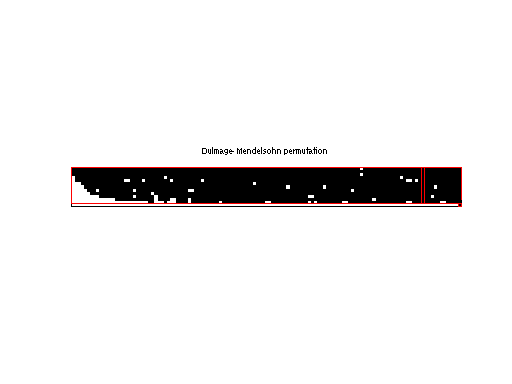

| # of blocks from dmperm | 6 |
| # strongly connected comp. | 1 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 0% |
| numeric value symmetry | 0% |
| type | binary |
| structure | rectangular |
| Cholesky candidate? | no |
| positive definite? | no |
| author | |
| editor | C. Meszaros |
| date | 2004 |
| kind | linear programming problem |
| 2D/3D problem? | no |
| Additional fields | size and type |
| b | full 825-by-1 |
| c | full 8627-by-1 |
| lo | full 8627-by-1 |
| hi | full 8627-by-1 |
| z0 | full 1-by-1 |
Notes:
http://www.sztaki.hu/~meszaros/public_ftp/lptestset Converted to standard form via Resende and Veiga's mpsrd: minimize c'*x, subject to A*x=b and lo <= x <= hi
| Ordering statistics: | result |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 4,155,236 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 213,812 |

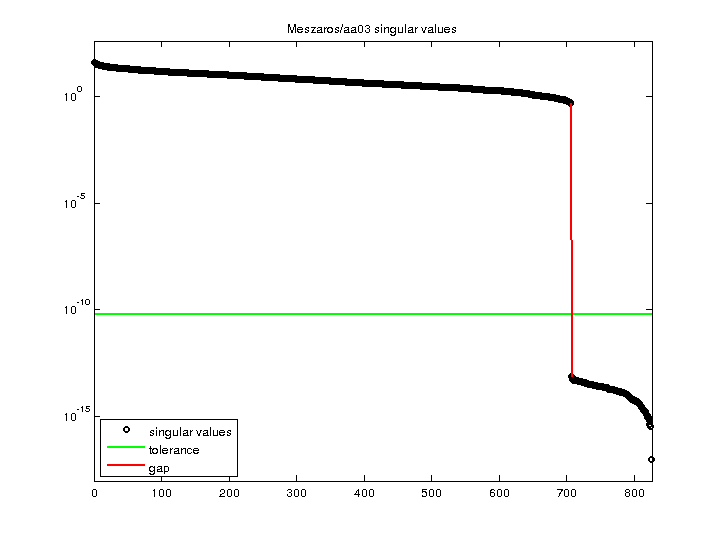

| SVD-based statistics: | |
| norm(A) | 39.3406 |
| min(svd(A)) | 9.42304e-18 |
| cond(A) | 4.17494e+18 |
| rank(A) | 706 |
| sprank(A)-rank(A) | 116 |
| null space dimension | 119 |
| full numerical rank? | no |
| singular value gap | 6.13205e+12 |
| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
