Matrix properties
number of rows	14,109
number of columns	14,109
nonzeros	196,448
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	binary
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	C. Schultz
editor	H. Meyerhenke
date	2011
kind	random unweighted graph
2D/3D problem?	no

Notes:

DIMACS10 star-mixtures set

Each graph in this benchmark represents a star-like structure of
different graphs S0 , . . . , St. Graphs S1 , . . . , St are weakly
connected to the center S0 by random edges. The total number of edges
between each Si and S0 was less than 3% out of the total number of
edges in Si . The graphs are mixtures of the following structures:
social networks, finite-element graphs, VLSI chips, peer-to-peer
networks, and matrices from optimization solvers.

More info can be found in the paper I. Safro, P. Sanders, C. Schulz:
Advanced Coarsening Schemes for Graph Partitioning, SEA 2012.

Author: Christian Schulz, uploaded on March 30, 2012.

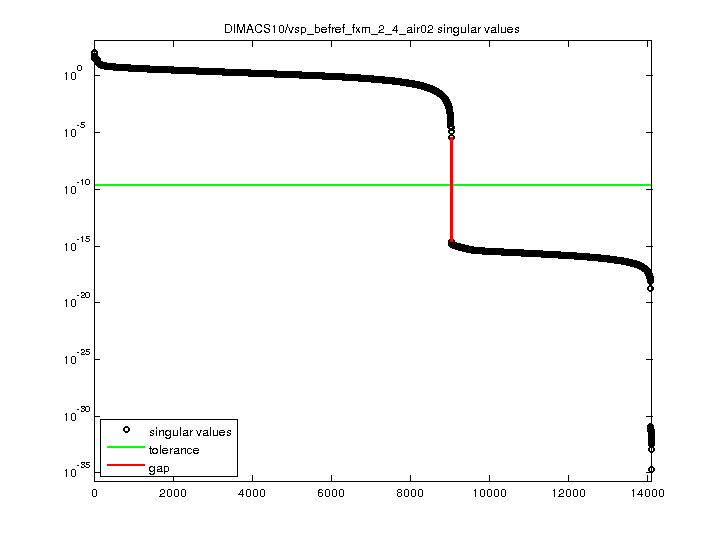

SVD-based statistics:
norm(A)	118.753
min(svd(A))	1.91305e-35
cond(A)	6.20751e+36
rank(A)	9,030
null space dimension	5,079
full numerical rank?	no
singular value gap	1.43992e+09

singular values (MAT file):	click here
SVD method used:	s = svd (full (A))
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

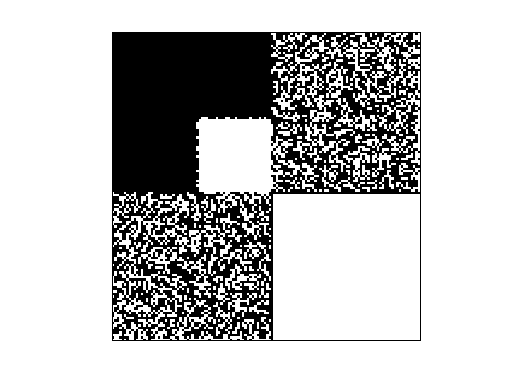

Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
