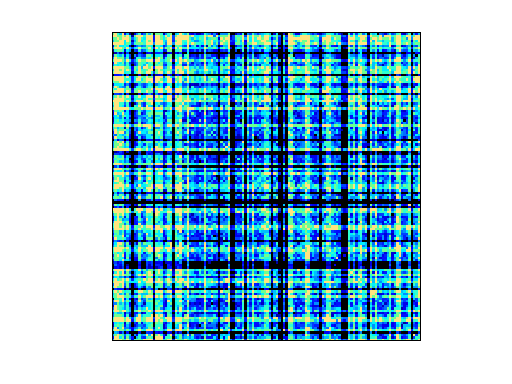

Matrix: DIMACS10/kron_g500-logn16
Description: DIMACS10 set: kronecker/kron_g500-logn16
|
| (undirected graph drawing) |
 |
 |
| Matrix properties | |
| number of rows | 65,536 |
| number of columns | 65,536 |
| nonzeros | 4,912,469 |

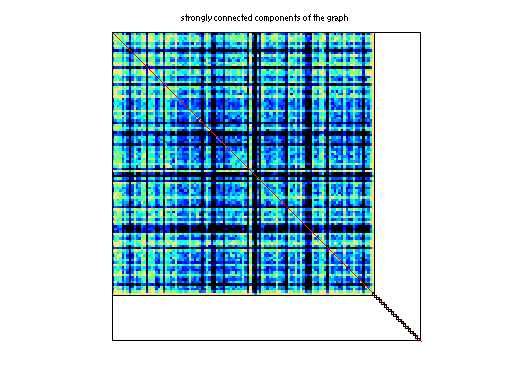

| # strongly connected comp. | 10,217 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | symmetric |
| numeric value symmetry | symmetric |
| type | integer |
| structure | symmetric |
| Cholesky candidate? | no |
| positive definite? | no |
| author | D. Bader, J. Berry, S. Kahan, R. Murphy, E. Reidy, J. Willcock |
| editor | D. Bader, J. Berry, S. Kahan, R. Murphy, E. Reidy, J. Willcock |
| date | 2010 |
| kind | undirected multigraph |
| 2D/3D problem? | no |
Notes:
10th DIMACS Implementation Challenge:
http://www.cc.gatech.edu/dimacs10/index.shtml
As stated on their main website (
http://dimacs.rutgers.edu/Challenges/ ), the "DIMACS Implementation
Challenges address questions of determining realistic algorithm
performance where worst case analysis is overly pessimistic and
probabilistic models are too unrealistic: experimentation can provide
guides to realistic algorithm performance where analysis fails."
For the 10th DIMACS Implementation Challenge, the two related
problems of graph partitioning and graph clustering were chosen.
Graph partitioning and graph clustering are among the aforementioned
questions or problem areas where theoretical and practical results
deviate significantly from each other, so that experimental outcomes
are of particular interest.
Problem Motivation
Graph partitioning and graph clustering are ubiquitous subtasks in
many application areas. Generally speaking, both techniques aim at
the identification of vertex subsets with many internal and few
external edges. To name only a few, problems addressed by graph
partitioning and graph clustering algorithms are:
* What are the communities within an (online) social network?
* How do I speed up a numerical simulation by mapping it
efficiently onto a parallel computer?
* How must components be organized on a computer chip such that
they can communicate efficiently with each other?
* What are the segments of a digital image?
* Which functions are certain genes (most likely) responsible
for?
Challenge Goals
* One goal of this Challenge is to create a reproducible picture
of the state-of-the-art in the area of graph partitioning
(GP) and graph clustering (GC) algorithms. To this end we
are identifying a standard set of benchmark instances and
generators.
* Moreover, after initiating a discussion with the community, we
would like to establish the most appropriate problem
formulations and objective functions for a variety of
applications.
* Another goal is to enable current researchers to compare their
codes with each other, in hopes of identifying the most
effective algorithmic innovations that have been proposed.
* The final goal is to publish proceedings containing results
presented at the Challenge workshop, and a book containing
the best of the proceedings papers.
Problems Addressed
The precise problem formulations need to be established in the course
of the Challenge. The descriptions below serve as a starting point.
* Graph partitioning:
The most common formulation of the graph partitioning problem
for an undirected graph G = (V,E) asks for a division of V into
k pairwise disjoint subsets (partitions) such that all
partitions are of approximately equal size and the edge-cut,
i.e., the total number of edges having their incident nodes in
different subdomains, is minimized. The problem is known to be
NP-hard.
* Graph clustering:
Clustering is an important tool for investigating the
structural properties of data. Generally speaking, clustering
refers to the grouping of objects such that objects in the same
cluster are more similar to each other than to objects of
different clusters. The similarity measure depends on the
underlying application. Clustering graphs usually refers to the
identification of vertex subsets (clusters) that have
significantly more internal edges (to vertices of the same
cluster) than external ones (to vertices of another cluster).
There are 10 data sets in the DIMACS10 collection:
Kronecker: synthetic graphs from the Graph500 benchmark
dyn-frames: frames from a 2D dynamic simulation
Delaunay: Delaunay triangulations of random points in the plane
coauthor: citation and co-author networks
streets: real-world street networks
Walshaw: Chris Walshaw's graph partitioning archive
matrix: graphs from the UF collection (not added here)
random: random geometric graphs (random points in the unit square)
clustering: real-world graphs commonly used as benchmarks
numerical: graphs from numerical simulation
Some of the graphs already exist in the UF Collection. In some cases,
the original graph is unsymmetric, with values, whereas the DIMACS
graph is the symmetrized pattern of A+A'. Rather than add duplicate
patterns to the UF Collection, a MATLAB script is provided at
http://www.cise.ufl.edu/research/sparse/dimacs10 which downloads
each matrix from the UF Collection via UFget, and then performs whatever
operation is required to convert the matrix to the DIMACS graph problem.
Also posted at that page is a MATLAB code (metis_graph) for reading the
DIMACS *.graph files into MATLAB.
Kronecker: Kronecker Generator Graphs
The original Kronecker files contain self-loops and multiple edges.
These properties are also present in real-world data sets. However,
some tools cannot handle these "artifacts" at the moment. That is why
we present "cleansed" versions of the data sets as well. For the
Challenge you should expect to be confronted with the original data
with self-loops and multiple edges. However, the final decision on
this issue will be made based on participant feedback.
All files have been generated with the R-MAT parameters A=0.57, B=0.19,
C=0.19, and D=1-(A+B+C)=0.05 and edgefactor=48, i.e., the number of
edges equals 48*n, where n is the number of vertices. Details about the
generator and the parameter meanings can be found on the Graph500
website. ( http://www.graph500.org/Specifications.html )
There are 12 graphs in the DIMACS10 test set at
http://www.cc.gatech.edu/dimacs10/index.shtml . Them come in 6 pairs.
One graph in each pair is a multigraph, with self-edges. The other
graph is the nonzero pattern of the first (binary), with self-edges
removed. MATLAB cannot directly represent multigraph, so in the UF
Collection the unweighted multigraph G is represented as a matrix A
where A(i,j) is an integer equal to the number edges (i,j) in G.
The binary graphs include the word 'simple' in their
name In the UF Collection, only the multigraph is included,
since the simple graph can be constructed from the multigraph.
If A is the multigraph, the simple graph S can be computed as:
S = spones (tril (A,-1)) + spones (triu (A,1)) ;
DIMACS10 graph: UF matrix:
--------------- -------------
kronecker/kron_g500-logn16 DIMACS10/kron_g500-logn16
kronecker/kron_g500-simple-logn16
kronecker/kron_g500-logn17 DIMACS10/kron_g500-logn17
kronecker/kron_g500-simple-logn17
kronecker/kron_g500-logn18 DIMACS10/kron_g500-logn18
kronecker/kron_g500-simple-logn18
kronecker/kron_g500-logn19 DIMACS10/kron_g500-logn19
kronecker/kron_g500-simple-logn19
kronecker/kron_g500-logn20 DIMACS10/kron_g500-logn20
kronecker/kron_g500-simple-logn20
kronecker/kron_g500-logn21 DIMACS10/kron_g500-logn21
kronecker/kron_g500-simple-logn21
References: "Introducing the Graph 500," Richard C. Murphy, Kyle B.
Wheeler, Brian W. Barrett, James A. Ang, Cray User's Group (CUG), May
5, 2010.
D.A. Bader, J. Feo, J. Gilbert, J. Kepner, D. Koester, E. Loh, K.
Madduri, W. Mann, Theresa Meuse, HPCS Scalable Synthetic Compact
Applications #2 Graph Analysis (SSCA#2 v2.2 Specification), 5
September 2007.
D. Chakrabarti, Y. Zhan, and C. Faloutsos, R-MAT: A recursive model
for graph mining, SIAM Data Mining 2004.
Section 17.6, Algorithms in C (third edition). Part 5 Graph
Algorithms, Robert Sedgewick (Programs 17.7 and 17.8)
P. Sanders, Random Permutations on Distributed, External and
Hierarchical Memory, Information Processing Letters 67 (1988) pp
305-309.
"DFS: A Simple to Write Yet Difficult to Execute Benchmark," Richard C.
Murphy, Jonathan Berry, William McLendon, Bruce Hendrickson, Douglas
Gregor, Andrew Lumsdaine, IEEE International Symposium on Workload
Characterizations 2006 (IISWC06), San Jose, CA, 25-27 October 2006.
---- sample code for generating these matrices:
function ij = kronecker_generator (SCALE, edgefactor)
%% Generate an edgelist according to the Graph500
%% parameters. In this sample, the edge list is
%% returned in an array with two rows, where StartVertex
%% is first row and EndVertex is the second. The vertex
%% labels start at zero.
%%
%% Example, creating a sparse matrix for viewing:
%% ij = kronecker_generator (10, 16);
%% G = sparse (ij(1,:)+1, ij(2,:)+1, ones (1, size (ij, 2)));
%% spy (G);
%% The spy plot should appear fairly dense. Any locality
%% is removed by the final permutations.
%% Set number of vertices.
N = 2^SCALE;
%% Set number of edges.
M = edgefactor * N;
%% Set initiator probabilities.
[A, B, C] = deal (0.57, 0.19, 0.19);
%% Create index arrays.
ij = ones (2, M);
%% Loop over each order of bit.
ab = A + B;
c_norm = C/(1 - (A + B));
a_norm = A/(A + B);
for ib = 1:SCALE,
%% Compare with probabilities and set bits of indices.
ii_bit = rand (1, M) > ab;
jj_bit = rand (1, M) > ( c_norm * ii_bit + a_norm * not (ii_bit) );
ij = ij + 2^(ib-1) * [ii_bit; jj_bit];
end
%% Permute vertex labels
p = randperm (N);
ij = p(ij);
%% Permute the edge list
p = randperm (M);
ij = ij(:, p);
%% Adjust to zero-based labels.
ij = ij - 1;
function G = kernel_1 (ij)
%% Compute a sparse adjacency matrix representation
%% of the graph with edges from ij.
%% Remove self-edges.
ij(:, ij(1,:) == ij(2,:)) = [];
%% Adjust away from zero labels.
ij = ij + 1;
%% Find the maximum label for sizing.
N = max (max (ij));
%% Create the matrix, ensuring it is square.
G = sparse (ij(1,:), ij(2,:), ones (1, size (ij, 2)), N, N);
%% Symmetrize to model an undirected graph.
G = spones (G + G.');
For a description of the statistics displayed above, click here.
