Matrix: DIMACS10/G_n_pin_pout

Description: DIMACS10 set: clustering/G_n_pin_pout

DIMACS10/G_n_pin_pout graph
(undirected graph drawing)


DIMACS10/G_n_pin_pout

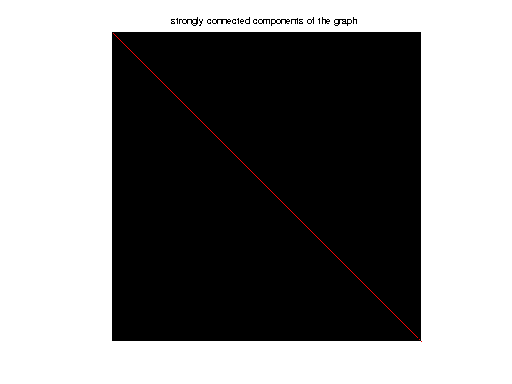

scc of DIMACS10/G_n_pin_pout

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: DIMACS10
  • Click here for a description of the DIMACS10 group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(2574) or UFget('DIMACS10/G_n_pin_pout') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows100,000
    number of columns100,000
    nonzeros1,002,396
    # strongly connected comp.6
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorH. Meyerhenke
    editorH. Meyerhenke
    date2011
    kindrandom undirected graph
    2D/3D problem?no

    Notes:

    DIMACS10 set: clustering/G_n_pin_pout
    source: http://www.cc.gatech.edu/dimacs10/archive/clustering.shtml

    This graph has been generated using a two-level Gnp random-graph
    generator.  First, each vertex chooses a cluster to belong to,
    iid randomly. Then, in the spirit of the Erdos-Renyi model,
    cluster-internal edges are created with a given internal
    probability each, then cluster-external edges are created with a
    smaller external probability each. The parameters for this
    instance are: 100000 vertices, 316 clusters, the internal and
    the external edge probability are chosen such that the expected
    number of cluster-internal and the expected number of cluster-
    external incidences of a node are both five. Such a graph is simple.
    For references, details and a dynamic version see the project page:
    http://i11www.iti.uni-karlsruhe.de/en/projects/spp1307/dyngen


    For a description of the statistics displayed above, click here.
