Matrix: VanVelzen/Zd_Jac3_db

Description: Chemical process simulation, Nils van Velzen (diagonal blocks only)

VanVelzen/Zd_Jac3_db graph VanVelzen/Zd_Jac3_db graph
(bipartite graph drawing) (graph drawing of A+A')

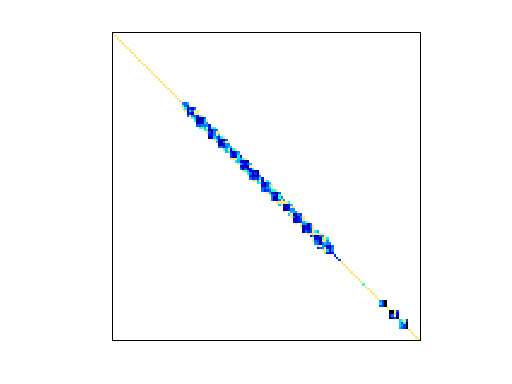

VanVelzen/Zd_Jac3_db dmperm of VanVelzen/Zd_Jac3_db

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: VanVelzen
  • Click here for a description of the VanVelzen group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 5 MB. Use UFget(1339) or UFget('VanVelzen/Zd_Jac3_db') in MATLAB.
  • download in Matrix Market format, file size: 8 MB.
  • download in Rutherford/Boeing format, file size: 6 MB.

    Matrix properties
    number of rows22,835
    number of columns22,835
    nonzeros713,907
    structural full rank?yes
    structural rank22,835
    # of blocks from dmperm9,833
    # strongly connected comp.9,833
    explicit zero entries0
    nonzero pattern symmetry 33%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorN. van Velzen
    editorT. Davis
    date2006
    kindchemical process simulation problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 22835-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,255,295
    Cholesky flop count1.9e+09
    nnz(L+U), no partial pivoting, with AMD6,487,755
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,292,142
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,875,673

    SVD-based statistics:
    norm(A)1.19412e+09
    min(svd(A))2.13775e-10
    cond(A)5.58586e+18
    rank(A)22,374
    sprank(A)-rank(A)461
    null space dimension461
    full numerical rank?no
    singular value gap1.07161

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

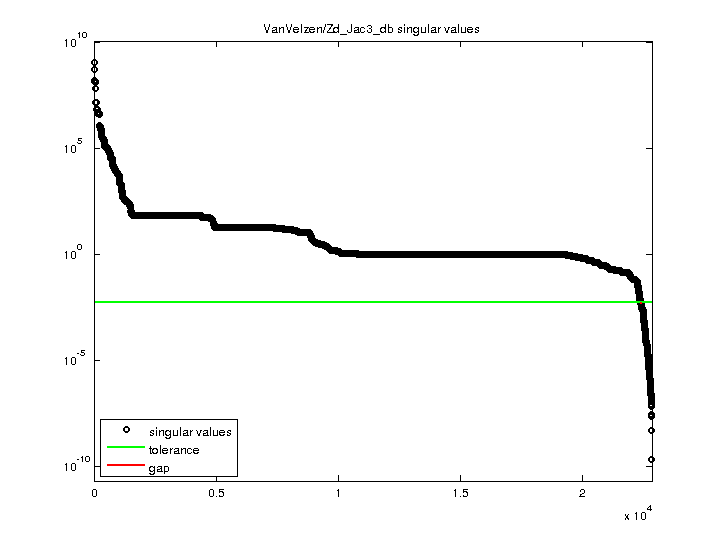

    VanVelzen/Zd_Jac3_db svd

    For a description of the statistics displayed above, click here.
