Matrix properties
number of rows	17,281
number of columns	17,281
nonzeros	553,562
structural full rank?	yes
structural rank	17,281
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	31%
numeric value symmetry	0%
type	real
structure	unsymmetric
Cholesky candidate?	no
positive definite?	no

author	K. Shen
editor	T. Davis
date	2003
kind	2D/3D problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	2,661,061
Cholesky flop count	7.7e+08
nnz(L+U), no partial pivoting, with AMD	5,304,841
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	2,266,301
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	7,947,173

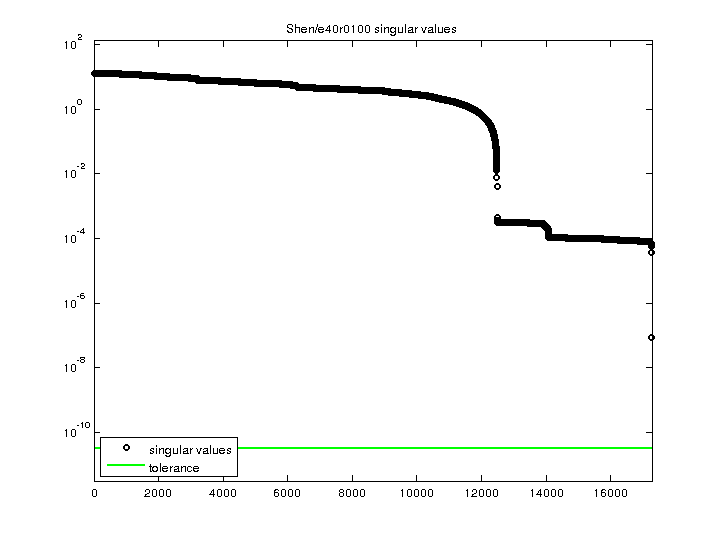

SVD-based statistics:
norm(A)	13.0884
min(svd(A))	8.68036e-08
cond(A)	1.50781e+08
rank(A)	17,281
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
