Matrix: Schenk_IBMSDS/ibm_matrix_2

Description: Olaf Schenk, Univ. Basel: IBM TJ Watson, Yorktown, semiconductor device

Schenk_IBMSDS/ibm_matrix_2 graph Schenk_IBMSDS/ibm_matrix_2 graph
(bipartite graph drawing) (graph drawing of A+A')

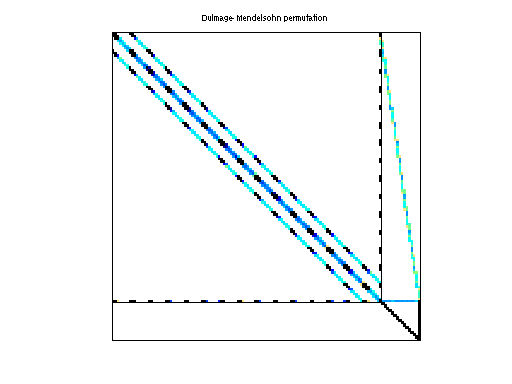

Schenk_IBMSDS/ibm_matrix_2 dmperm of Schenk_IBMSDS/ibm_matrix_2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Schenk_IBMSDS
  • Click here for a description of the Schenk_IBMSDS group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 5 MB. Use UFget(958) or UFget('Schenk_IBMSDS/ibm_matrix_2') in MATLAB.
  • download in Matrix Market format, file size: 6 MB.
  • download in Rutherford/Boeing format, file size: 5 MB.

    Matrix properties
    number of rows51,448
    number of columns51,448
    nonzeros537,038
    structural full rank?yes
    structural rank51,448
    # of blocks from dmperm6,627
    # strongly connected comp.6,627
    explicit zero entries519,572
    nonzero pattern symmetry 99%
    numeric value symmetry 19%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorIBM
    editorO. Schenk
    date2003
    kindsemiconductor device problem
    2D/3D problem?yes

    Additional fieldssize and type
    bfull 51448-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD18,440,767
    Cholesky flop count2.1e+10
    nnz(L+U), no partial pivoting, with AMD36,830,086
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD39,167,389
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD75,227,823

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 519572 explicit zero entries.

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
