Matrix properties
number of rows	7,479
number of columns	7,479
nonzeros	65,941
structural full rank?	yes
structural rank	7,479
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	IBM
editor	O. Schenk
date	2006
kind	optimization problem
2D/3D problem?	no

Additional fields	size and type
b	full 7479-by-1

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	81,065
Cholesky flop count	4.4e+06
nnz(L+U), no partial pivoting, with AMD	154,651
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	1,645,141
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	2,989,827

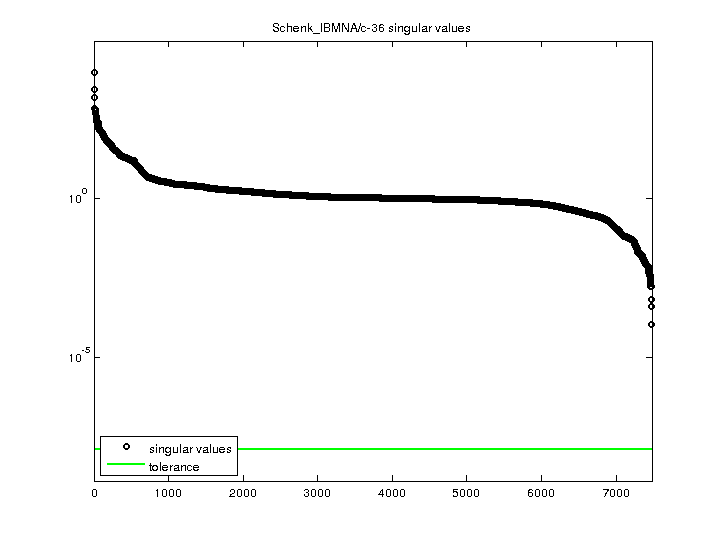

SVD-based statistics:
norm(A)	8741.12
min(svd(A))	0.000114412
cond(A)	7.64005e+07
rank(A)	7,479
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

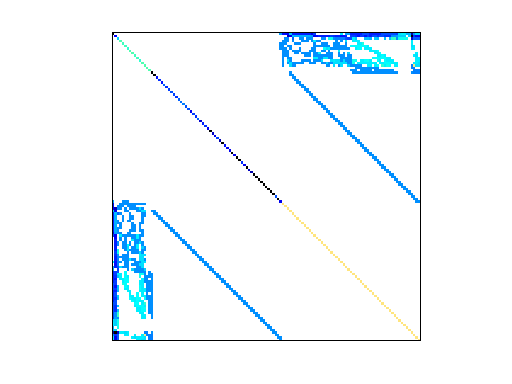

Matrix pictures by cspy, a MATLAB function in the CSparse package.
