Matrix properties
number of rows	3,969
number of columns	3,969
nonzeros	31,079
structural full rank?	yes
structural rank	3,969
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	IBM
editor	O. Schenk
date	2006
kind	optimization problem
2D/3D problem?	no

Additional fields	size and type
b	full 3969-by-1

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	22,885
Cholesky flop count	2.4e+05
nnz(L+U), no partial pivoting, with AMD	41,801
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	421,945
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	975,548

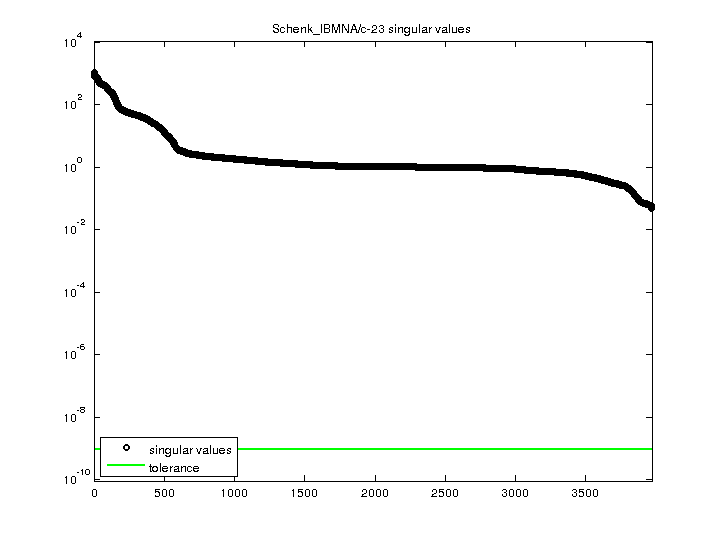

SVD-based statistics:
norm(A)	1089.71
min(svd(A))	0.0478029
cond(A)	22795.9
rank(A)	3,969
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

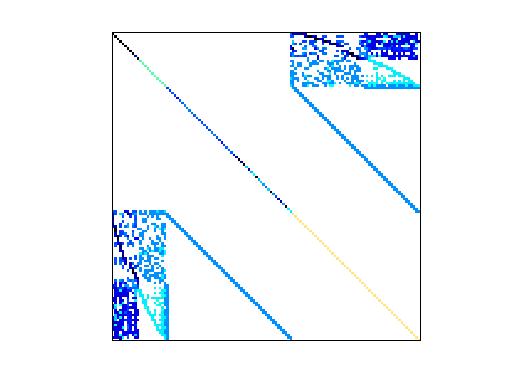

Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
