Matrix properties
number of rows	3,509
number of columns	3,509
nonzeros	32,145
structural full rank?	yes
structural rank	3,509

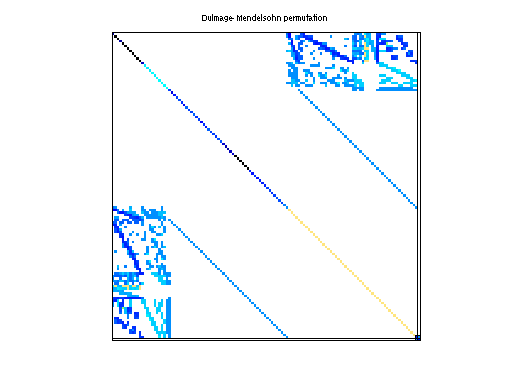

# of blocks from dmperm	7
# strongly connected comp.	7
explicit zero entries	12
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	IBM
editor	O. Schenk
date	2006
kind	optimization problem
2D/3D problem?	no

Additional fields	size and type
b	full 3509-by-1

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	34,682
Cholesky flop count	9.1e+05
nnz(L+U), no partial pivoting, with AMD	65,855
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	232,524
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	463,868

Note that all matrix statistics (except nonzero pattern symmetry) exclude the 12 explicit zero entries.

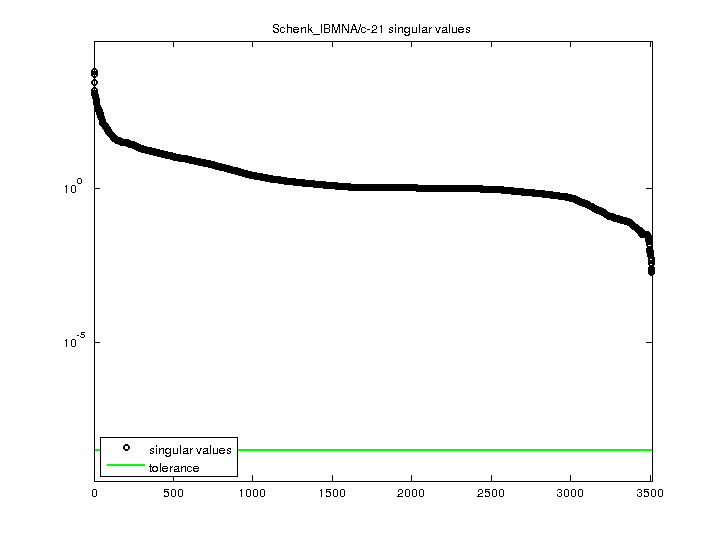

SVD-based statistics:
norm(A)	5972.28
min(svd(A))	0.00181951
cond(A)	3.28236e+06
rank(A)	3,509
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

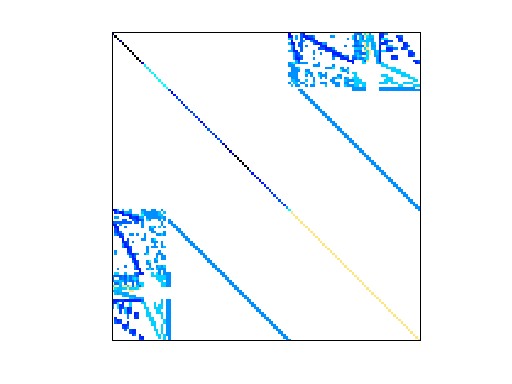

Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
