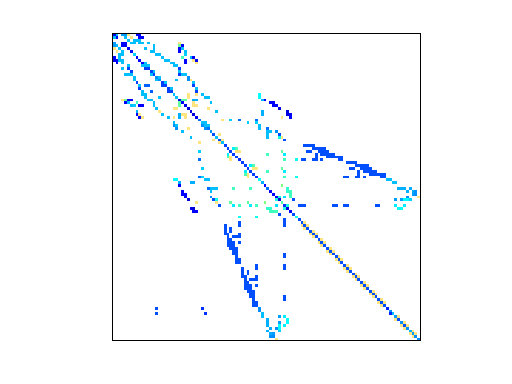

Matrix: Sandia/oscil_dcop_39
Description: Sandia/oscil_dcop_39 circuit simulation matrix. Sandia National Lab.
|
|
| (bipartite graph drawing) | (graph drawing of A+A') |
 |
 |
 |
| Matrix properties | |
| number of rows | 430 |
| number of columns | 430 |
| nonzeros | 1,544 |
| structural full rank? | yes |
| structural rank | 430 |

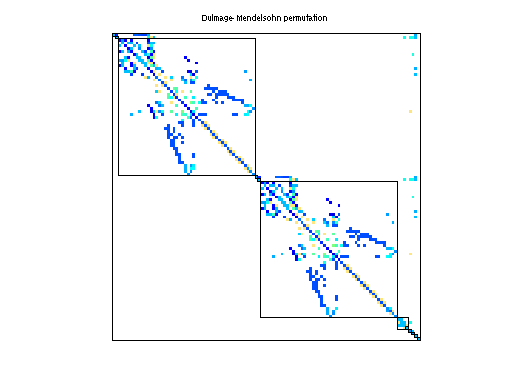

| # of blocks from dmperm | 31 |

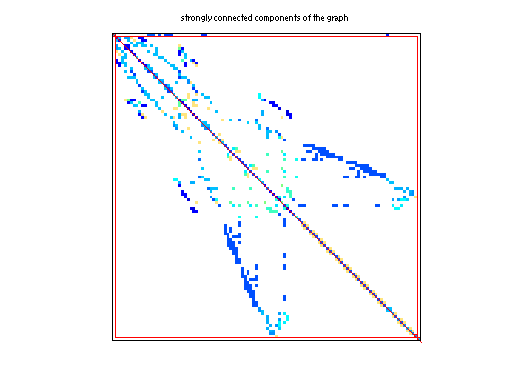

| # strongly connected comp. | 9 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 98% |
| numeric value symmetry | 70% |
| type | real |
| structure | unsymmetric |
| Cholesky candidate? | no |
| positive definite? | no |
| author | R. Hoekstra |
| editor | T. Davis |
| date | 2003 |
| kind | subsequent circuit simulation problem |
| 2D/3D problem? | no |
| Additional fields | size and type |
| b | full 430-by-1 |
Notes:
next: Sandia/oscil_dcop_40 first: Sandia/oscil_dcop_01
| Ordering statistics: | result |
| nnz(chol(P*(A+A'+s*I)*P')) with AMD | 1,439 |
| Cholesky flop count | 5.2e+03 |
| nnz(L+U), no partial pivoting, with AMD | 2,448 |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 1,830 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 3,504 |

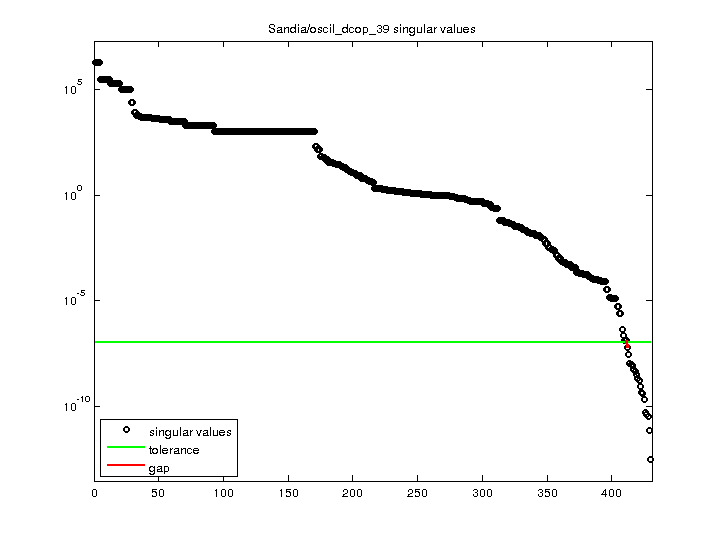

| SVD-based statistics: | |
| norm(A) | 2.001e+06 |
| min(svd(A)) | 2.80397e-13 |
| cond(A) | 7.13633e+18 |
| rank(A) | 411 |
| sprank(A)-rank(A) | 19 |
| null space dimension | 19 |
| full numerical rank? | no |
| singular value gap | 2.09045 |
| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |
