Matrix: Sandia/adder_dcop_66
Description: Sandia/adder_dcop_66 circuit simulation matrix. Sandia National Lab.
|
|
| (bipartite graph drawing) | (graph drawing of A+A') |
 |
 |
 |
| Matrix properties | |
| number of rows | 1,813 |
| number of columns | 1,813 |
| nonzeros | 11,246 |
| structural full rank? | yes |
| structural rank | 1,813 |
| # of blocks from dmperm | 469 |
| # strongly connected comp. | 6 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 65% |
| numeric value symmetry | 1% |
| type | real |
| structure | unsymmetric |
| Cholesky candidate? | no |
| positive definite? | no |
| author | R. Hoekstra |
| editor | T. Davis |
| date | 2003 |
| kind | subsequent circuit simulation problem |
| 2D/3D problem? | no |
Notes:
next: Sandia/adder_dcop_67 first: Sandia/init_adder1
| Ordering statistics: | result |
| nnz(chol(P*(A+A'+s*I)*P')) with AMD | 12,432 |
| Cholesky flop count | 1.0e+05 |
| nnz(L+U), no partial pivoting, with AMD | 23,051 |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 223,543 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 992,206 |

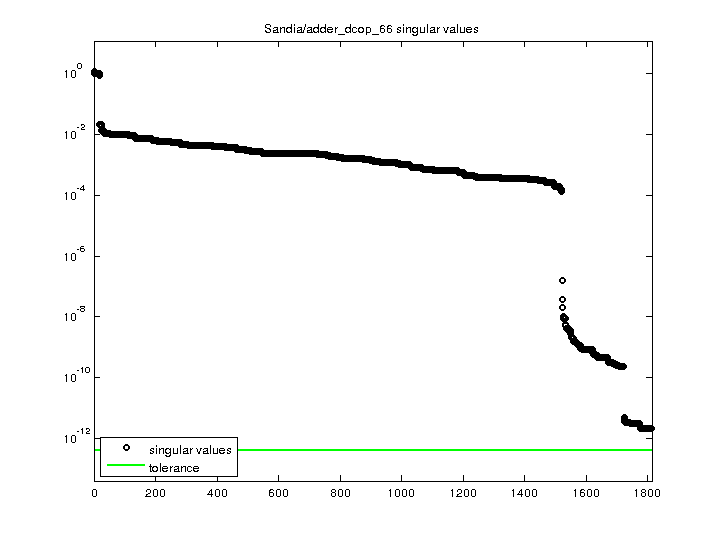

| SVD-based statistics: | |
| norm(A) | 1.1743 |
| min(svd(A)) | 2.09295e-12 |
| cond(A) | 5.61075e+11 |
| rank(A) | 1,813 |
| sprank(A)-rank(A) | 0 |
| null space dimension | 0 |
| full numerical rank? | yes |
| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
