Matrix: SNAP/email-EuAll

Description: Email network from a EU research institution

SNAP/email-EuAll graph SNAP/email-EuAll graph
(bipartite graph drawing) (graph drawing of A+A')


SNAP/email-EuAll

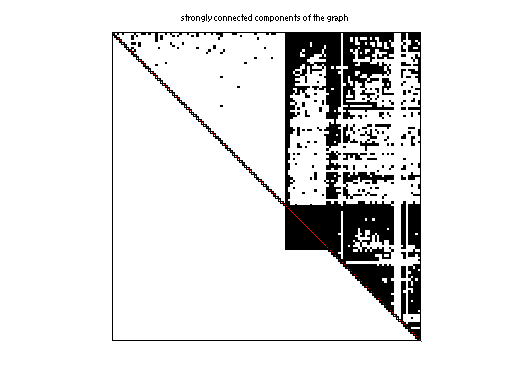

scc of SNAP/email-EuAll

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: SNAP
  • Click here for a description of the SNAP group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(2289) or UFget('SNAP/email-EuAll') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows265,214
    number of columns265,214
    nonzeros420,045
    # strongly connected comp.231,000
    explicit zero entries0
    nonzero pattern symmetry 26%
    numeric value symmetry 26%
    typebinary
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorJ. Leskovec, J. Kleinberg and C. Faloutsos
    editorJ. Leskovec
    date2005
    kinddirected graph
    2D/3D problem?no

    Notes:

    Networks from SNAP (Stanford Network Analysis Platform) Network Data Sets,
    Jure Leskovec http://snap.stanford.edu/data/index.html
    email jure at cs.stanford.edu

    EU email communication network

    Dataset information

    The network was generated using email data from a large European research
    institution. For a period from October 2003 to May 2005 (18 months) we have
    anonymized information about all incoming and outgoing email of the research
    institution. For each sent or received email message we know the time, the
    sender and the recipient of the email. Overall we have 3,038,531 emails between
    287,755 different email addresses. Note that we have a complete email graph for
    only 1,258 email addresses that come from the research institution.
    Furthermore, there are 34,203 email addresses that both sent and received email
    within the span of our dataset. All other email addresses are either
    non-existing, mistyped or spam.

    Given a set of email messages, each node corresponds to an email address. We
    create a directed edge between nodes i and j, if i sent at least one message to
    j.

    Dataset statistics

    Nodes   265214
    Edges   420045
    Nodes in largest WCC    224832 (0.848)
    Edges in largest WCC    395270 (0.941)
    Nodes in largest SCC    34203 (0.129)
    Edges in largest SCC    151930 (0.362)
    Average clustering coefficient  0.3093
    Number of triangles     267313
    Fraction of closed triangles    0.004106
    Diameter (longest shortest path)    13
    90-percentile effective diameter    4.5

    Source (citation)

    J. Leskovec, J. Kleinberg and C. Faloutsos. Graph Evolution: Densification and
    Shrinking Diameters. ACM Transactions on Knowledge Discovery from Data (ACM
    TKDD), 1(1), 2007.

    Files
    File    Description
    email-EuAll.txt.gz  Email network of a large European Research Institution


    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
