Matrix: SNAP/cit-HepPh

Description: Arxiv High Energy Physics paper citation network

SNAP/cit-HepPh graph SNAP/cit-HepPh graph
(bipartite graph drawing) (graph drawing of A+A')


SNAP/cit-HepPh

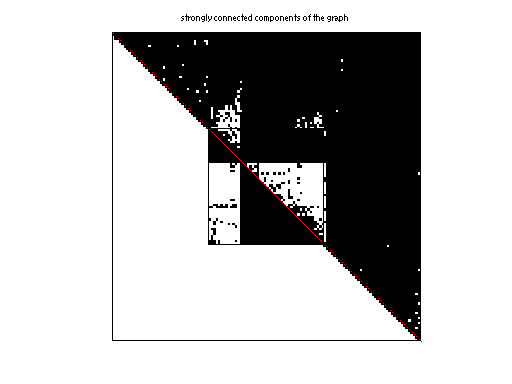

scc of SNAP/cit-HepPh

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: SNAP
  • Click here for a description of the SNAP group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(2292) or UFget('SNAP/cit-HepPh') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows34,546
    number of columns34,546
    nonzeros421,578
    # strongly connected comp.21,608
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorJ. Gehrke, P. Ginsparg, J. Kleinberg
    editorJ. Leskovec
    date2003
    kinddirected graph
    2D/3D problem?no

    Additional fieldssize and type
    nodenamefull 34546-by-1

    Notes:

    Networks from SNAP (Stanford Network Analysis Platform) Network Data Sets,
    Jure Leskovec http://snap.stanford.edu/data/index.html
    email jure at cs.stanford.edu

    High-energy physics citation network
    Dataset information

    Arxiv HEP-PH (high energy physics phenomenology ) citation graph is from the
    e-print arXiv and covers all the citations within a dataset of 34,546 papers
    with 421,578 edges. If a paper i cites paper j, the graph contains a directed
    edge from i to j. If a paper cites, or is cited by, a paper outside the
    dataset, the graph does not contain any information about this.

    The data covers papers in the period from January 1993 to April 2003 (124
    months). It begins within a few months of the inception of the arXiv, and thus
    represents essentially the complete history of its HEP-PH section.

    The data was originally released as a part of 2003 KDD Cup.

    Dataset statistics
    Nodes   34546
    Edges   421578
    Nodes in largest WCC    34401 (0.996)
    Edges in largest WCC    421485 (1.000)
    Nodes in largest SCC    12711 (0.368)
    Edges in largest SCC    139981 (0.332)
    Average clustering coefficient  0.2962
    Number of triangles     1276868
    Fraction of closed triangles    0.1457
    Diameter (longest shortest path)    12
    90-percentile effective diameter    5

    Source (citation)

    J. Leskovec, J. Kleinberg and C. Faloutsos. Graphs over Time: Densification
    Laws, Shrinking Diameters and Possible Explanations. ACM SIGKDD International
    Conference on Knowledge Discovery and Data Mining (KDD), 2005.

    J. Gehrke, P. Ginsparg, J. M. Kleinberg. Overview of the 2003 KDD Cup. SIGKDD
    Explorations 5(2): 149-151, 2003.

    Files
    File    Description
    cit-HepPh.txt.gz    Paper citation network of Arxiv High Energy Physics category
    cit-HepPh-dates.txt.gz  Time of nodes (paper submission time to Arxiv)

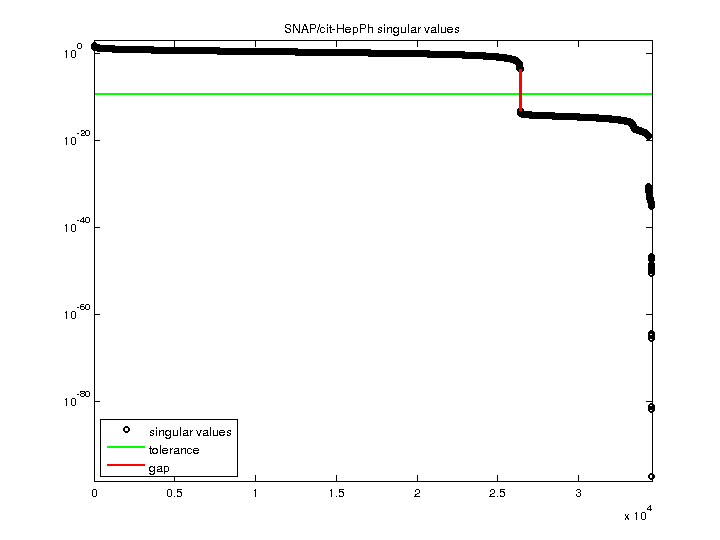

    SVD-based statistics:
    norm(A)57.0772
    min(svd(A))0
    cond(A)Inf
    rank(A)26,377
    null space dimension8,169
    full numerical rank?no
    singular value gap3.44355e+09

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

    SNAP/cit-HepPh svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
