Matrix: Pothen/tandem_dual
Description: tandem_dual, with coordinates. From NASA, collected by Alex Pothen
|
| (undirected graph drawing) |
 |
 |
| Matrix properties | |
| number of rows | 94,069 |
| number of columns | 94,069 |
| nonzeros | 460,493 |
| structural full rank? | yes |
| structural rank | 94,069 |
| # of blocks from dmperm | 1 |
| # strongly connected comp. | 1 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | symmetric |
| numeric value symmetry | symmetric |
| type | binary |
| structure | symmetric |
| Cholesky candidate? | yes |
| positive definite? | no |
| author | NASA |
| editor | G. Kumfert, A. Pothen |
| date | 2003 |
| kind | structural problem |
| 2D/3D problem? | yes |
| Additional fields | size and type |
| coord | full 94069-by-3 |
| Ordering statistics: | result |
| nnz(chol(P*(A+A'+s*I)*P')) with AMD | 11,679,587 |
| Cholesky flop count | 8.7e+09 |
| nnz(L+U), no partial pivoting, with AMD | 23,265,105 |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 27,489,044 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 49,547,979 |
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.

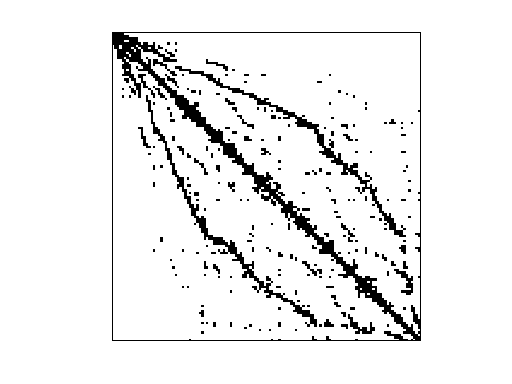

Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
