Matrix: Pajek/GD96_a

Description: Pajek network: Graph Drawing contest 1996

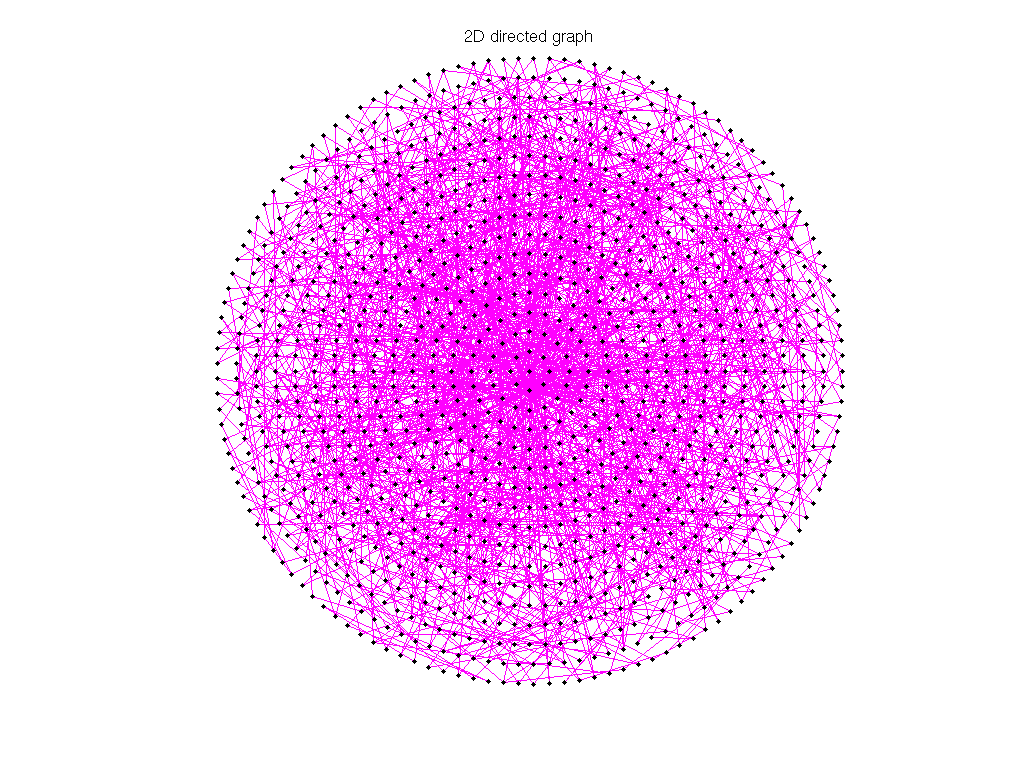

Pajek/GD96_a graph Pajek/GD96_a graph
(bipartite graph drawing) (graph drawing of A+A')


Pajek/GD96_a

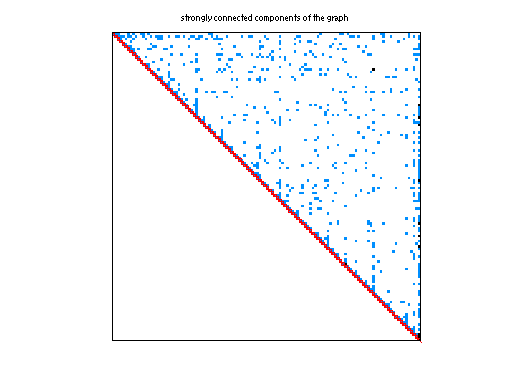

scc of Pajek/GD96_a Pajek/GD96_a graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Pajek
  • Click here for a description of the Pajek group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 15 KB. Use UFget(1488) or UFget('Pajek/GD96_a') in MATLAB.
  • download in Matrix Market format, file size: 12 KB.
  • download in Rutherford/Boeing format, file size: 12 KB.

    Matrix properties
    number of rows1,096
    number of columns1,096
    nonzeros1,677
    # strongly connected comp.1,096
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorGraph Drawing Contest
    editorV. Batagelj
    date1996
    kinddirected multigraph
    2D/3D problem?no

    Additional fieldssize and type
    nodenamefull 1096-by-1
    coordfull 1096-by-2

    Notes:

    ------------------------------------------------------------------------------
    Pajek network converted to sparse adjacency matrix for inclusion in UF sparse
    matrix collection, Tim Davis.  For Pajek datasets, See V. Batagelj & A. Mrvar,
    http://vlado.fmf.uni-lj.si/pub/networks/data/.
    ------------------------------------------------------------------------------
    The original problem had 3D xyz coordinates, but all values of z were equal
    to 0, and have been removed.  This graph has 2D coordinates.

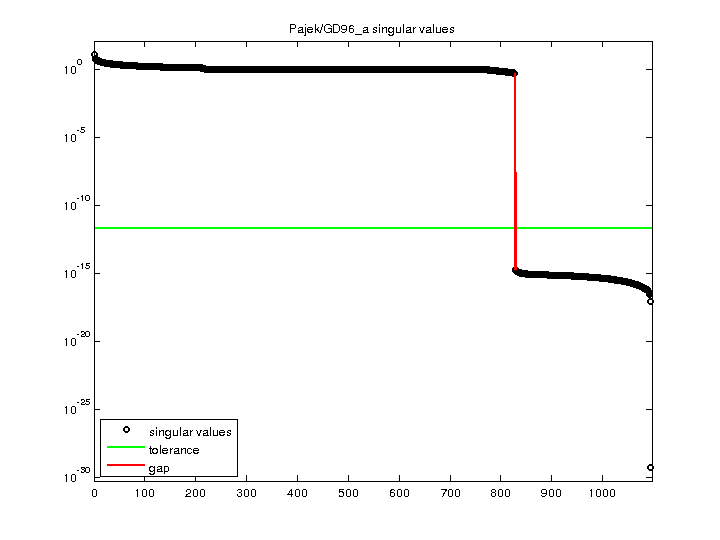

    SVD-based statistics:
    norm(A)12.4546
    min(svd(A))0
    cond(A)Inf
    rank(A)827
    null space dimension269
    full numerical rank?no
    singular value gap2.3572e+14

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Pajek/GD96_a svd

    For a description of the statistics displayed above, click here.
