Matrix: PARSEC/Si5H12

Description: Real-space pseudopotential method. Zhou, Saad, Tiago, Chelikowsky, Univ MN

PARSEC/Si5H12 graph
(undirected graph drawing)


PARSEC/Si5H12

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: PARSEC
  • Click here for a description of the PARSEC group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(1363) or UFget('PARSEC/Si5H12') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows19,896
    number of columns19,896
    nonzeros738,598
    structural full rank?yes
    structural rank19,896
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorY. Zhou, Y. Saad, M. Tiago, J. Chelikowsky
    editorT. Davis
    date2005
    kindtheoretical/quantum chemistry problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD78,918,573
    Cholesky flop count4.8e+11
    nnz(L+U), no partial pivoting, with AMD157,817,250
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD90,821,242
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD137,911,398

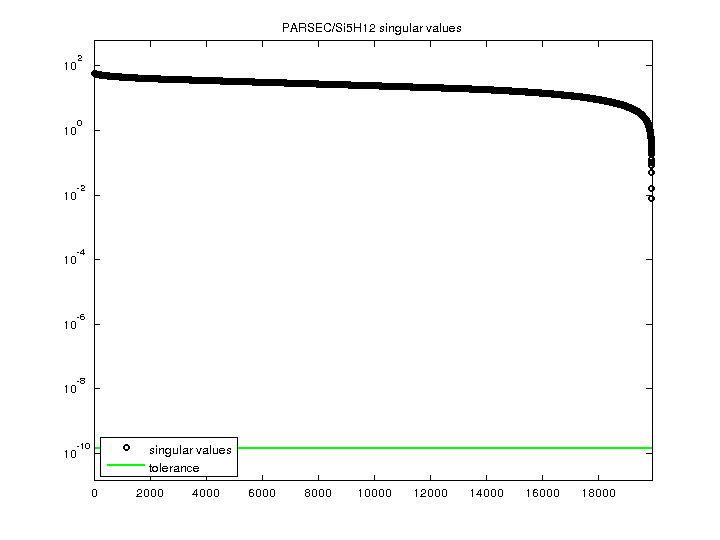

    SVD-based statistics:
    norm(A)58.5609
    min(svd(A))0.00803374
    cond(A)7289.38
    rank(A)19,896
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

    PARSEC/Si5H12 svd

    For a description of the statistics displayed above, click here.
