Matrix: Newman/power

Description: Western States Power Grid, Watts & Strogatz

Newman/power graph
(undirected graph drawing)

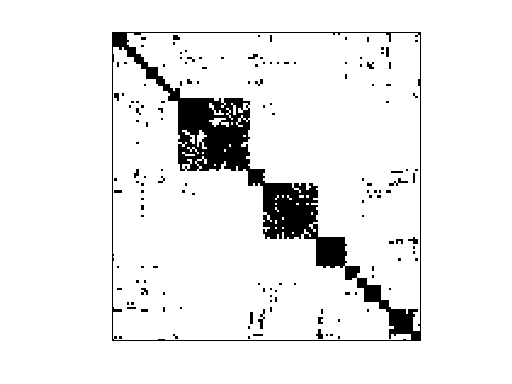

Newman/power

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Newman
  • Click here for a description of the Newman group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 32 KB. Use UFget(2404) or UFget('Newman/power') in MATLAB.
  • download in Matrix Market format, file size: 24 KB.
  • download in Rutherford/Boeing format, file size: 23 KB.

    Matrix properties
    number of rows4,941
    number of columns4,941
    nonzeros13,188
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorD. Watts, S. Strogatz
    editorM. Newman
    date1998
    kindundirected graph
    2D/3D problem?no

    Notes:

    Network collection from M. Newman
    http://www-personal.umich.edu/~mejn/netdata/

    Western States Power Grid

    Compiled by Duncan Watts and Steven Strogatz

    The graph "power" contains an undirected unweighted representation of the
    topology of the Western States Power Grid of the United States, compiled by
    Duncan Watts and Steven Strogatz.  The data are from the web site of
    Prof. Duncan Watts at Columbia University,
    http://cdg.columbia.edu/cdg/datasets.  Node IDs are the same as those used
    by Prof. Watts.

    These data can be cited as:

      D. J. Watts and S. H. Strogatz, "Collective dynamics of `small-world
      networks", Nature 393, 440-442 (1998).

    Note by Tim Davis: this graph has the same number of nodes and edges
    as the Pajek/USpowerGrid graph.  They are related as follows:

       Prob1 = UFget ('Newman/power')
       Prob2 = UFget ('Pajek/USpowerGrid')
       A = Prob1.A ;
       B = Prob2.B ;
       n = size (A,1) ;
       p = [2:n 1] ;
       isequal (A (p,p), B)

    This is because of the way the Pajek data set converted 0-based node IDs
    to 1-based.  In the Pajek set, node 0 is renamed node n, and this
    translation was then imported into the Pajek/ Group in the UF collection.
    The standard convention in MATLAB, and (elsewhere) in the UF Collection,
    is to map nodes 0:n-1 of a zero-based graph to 1:n.  The latter translation
    preserves the relative numbering of all the nodes; the Pajek translation
    does not.

    Although technically Newman/power is a duplicate matrix, I have added it
    to the UF Collection to preserve the original relative node ordering.


    SVD-based statistics:
    norm(A)7.48305
    min(svd(A))3.10852e-19
    cond(A)2.40727e+19
    rank(A)4,348
    null space dimension593
    full numerical rank?no
    singular value gap2.23267e+12

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

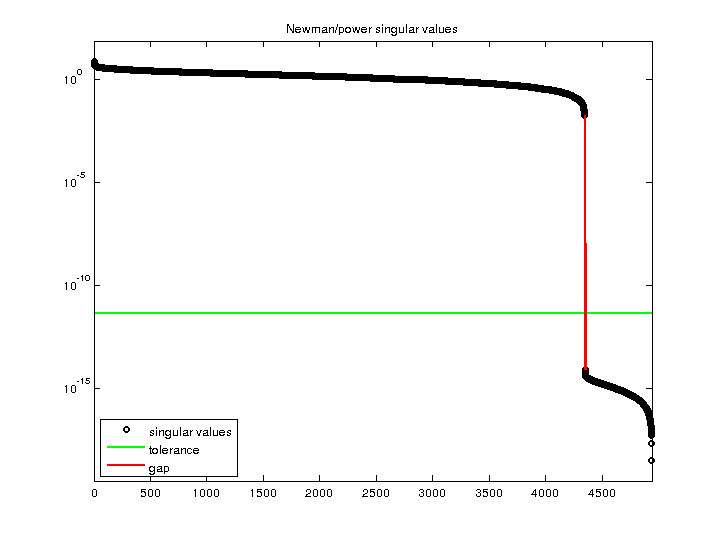

    Newman/power svd
