Matrix: Newman/cond-mat-2005

Description: collaboration network, preprints in condensed matter archive, www.arxiv.org

Newman/cond-mat-2005 graph
(undirected graph drawing)

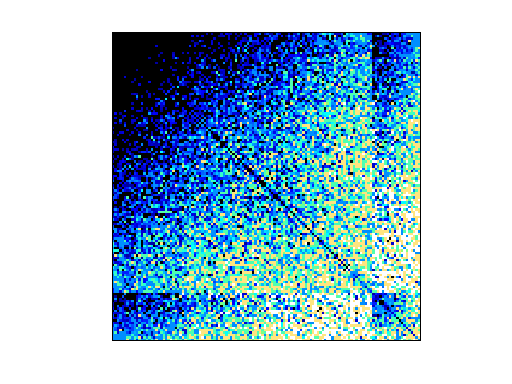

Newman/cond-mat-2005

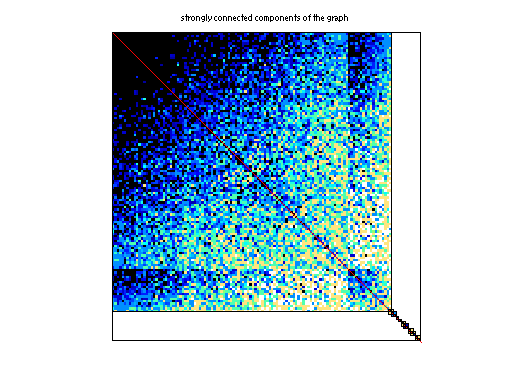

scc of Newman/cond-mat-2005

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Newman
  • Click here for a description of the Newman group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(2395) or UFget('Newman/cond-mat-2005') in MATLAB.
  • download in Matrix Market format, file size: 990 KB.
  • download in Rutherford/Boeing format, file size: 891 KB.

    Matrix properties
    number of rows40,421
    number of columns40,421
    nonzeros351,382
    # strongly connected comp.1,798
    explicit zero entries4
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorM. Newman
    editorM. Newman
    date2005
    kindundirected weighted graph
    2D/3D problem?no

    Additional fieldssize and type
    nodenamefull 40421-by-25

    Notes:

    Network collection from M. Newman
    http://www-personal.umich.edu/~mejn/netdata/

    The graph cond-mat-2005 contains an updated version of cond-mat, the
    collaboration network of scientists posting preprints on the condensed
    matter archive at www.arxiv.org.  This version is based on preprints posted
    to the archive between January 1, 1995 and March 31, 2005.  The network is
    weighted, with weights assigned as described in M. E. J. Newman,
    Phys. Rev. E 64, 016132 (2001).

    These data can be cited (as an updated version of)

      M. E. J. Newman, The structure of scientific collaboration networks,
      Proc. Natl. Acad. Sci. USA 98, 404-409 (2001).

    Note by Tim Davis:  in the original cond-mat-2005.gml graph from M. Newman
    2 of the edges had an edge weight of "inf".  This value cannot be stored
    in the UF Collection, so they have been replaced with zero.  See
    Problem.Zeros in the MATLAB version, or the explicit zero values in the MM
    and RB file formats.


    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 4 explicit zero entries.

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
