Matrix: Nasa/skirt

Description: SKIRT: Nasa matrix, but with a diagonal added to the original matrix

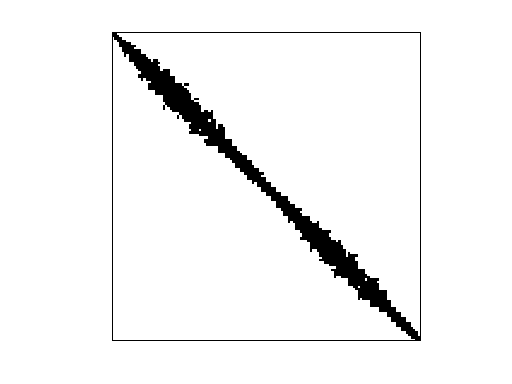

Nasa/skirt graph
(undirected graph drawing)

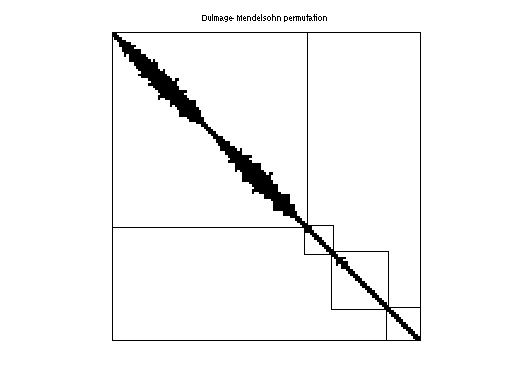

Nasa/skirt dmperm of Nasa/skirt

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Nasa
  • Click here for a description of the Nasa group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 190 KB. Use UFget(764) or UFget('Nasa/skirt') in MATLAB.
  • download in Matrix Market format, file size: 222 KB.
  • download in Rutherford/Boeing format, file size: 145 KB.

    Matrix properties
    number of rows12,598
    number of columns12,598
    nonzeros196,520
    structural full rank?yes
    structural rank12,598
    # of blocks from dmperm7
    # strongly connected comp.7
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorNASA
    editorG. Kumfert, A. Pothen
    date1995
    kindduplicate structural problem
    2D/3D problem?yes

    Notes:

    Identical to Pothen/skirt; the latter has xyz coordinates.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD480,579
    Cholesky flop count3.4e+07
    nnz(L+U), no partial pivoting, with AMD948,560
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD826,916
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,528,684

    SVD-based statistics:
    norm(A)23.3137
    min(svd(A))1.88483e-33
    cond(A)1.23691e+34
    rank(A)9,831
    sprank(A)-rank(A)2,767
    null space dimension2,767
    full numerical rank?no
    singular value gap1.45452e+09

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

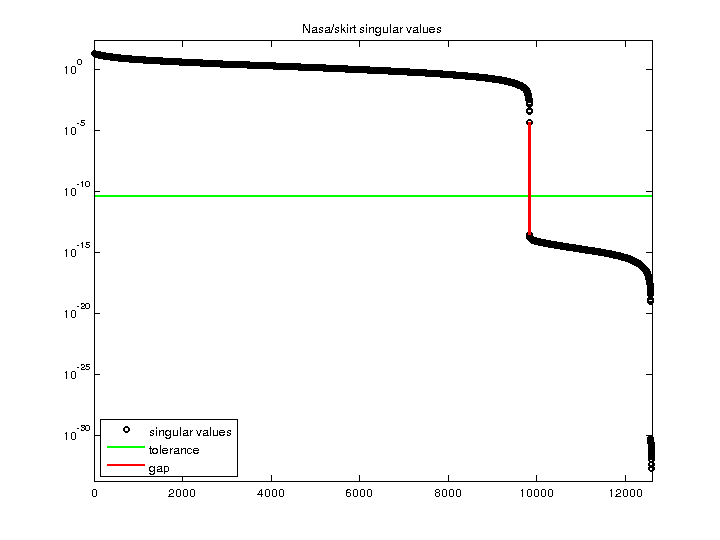

    Nasa/skirt svd

    For a description of the statistics displayed above, click here.
