Matrix properties
number of rows	1,824
number of columns	1,824
nonzeros	39,208
structural full rank?	yes
structural rank	1,824
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	yes
positive definite?	yes

author	NASA
editor	G. Kumfert, A. Pothen
date	1995
kind	structural problem
2D/3D problem?	yes

Additional fields	size and type
b	full 1824-by-1

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	69,309
Cholesky flop count	4.6e+06
nnz(L+U), no partial pivoting, with AMD	136,794
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	157,808
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	289,058

SVD-based statistics:
norm(A)	2.12172e+07
min(svd(A))	11.1906
cond(A)	1.89599e+06
rank(A)	1,824
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

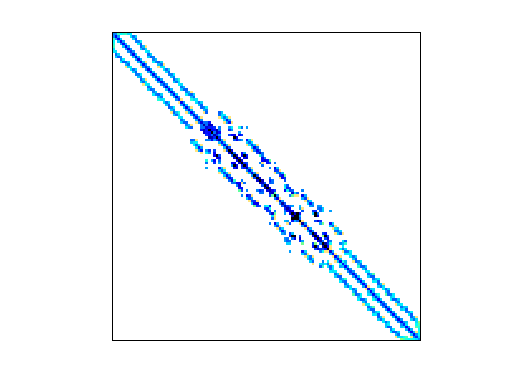

Matrix pictures by cspy, a MATLAB function in the CSparse package.
