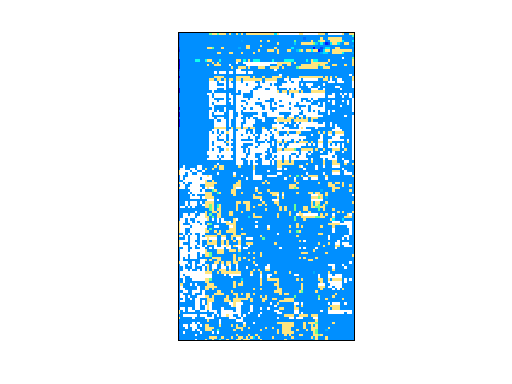

Matrix: NYPA/Maragal_7

Description: Rank deficient least squares problem, D. Maragal, NY Power Authority

NYPA/Maragal_7 graph
(bipartite graph drawing)


NYPA/Maragal_7 dmperm of NYPA/Maragal_7

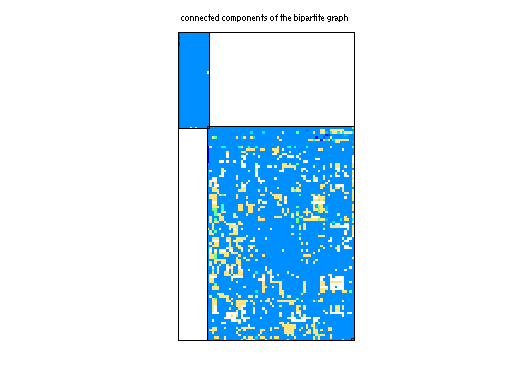

scc of NYPA/Maragal_7

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: NYPA
  • Click here for a description of the NYPA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 5 MB. Use UFget(1890) or UFget('NYPA/Maragal_7') in MATLAB.
  • download in Matrix Market format, file size: 8 MB.
  • download in Rutherford/Boeing format, file size: 7 MB.

    Matrix properties
    number of rows46,845
    number of columns26,564
    nonzeros1,200,537
    structural full rank?no
    structural rank25,866
    # of blocks from dmperm1,294
    # strongly connected comp.41
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorD. Maragal
    editorT. Davis
    date2008
    kindleast squares problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 46845-by-1

    Notes:

    rank deficient (rank(A) < sprank(A) < size(A,2))
    sprank: 25866 columns: 26564


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD241,876,349
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD232,203,788

    SVD-based statistics:
    norm(A)13.3284
    min(svd(A))0
    cond(A)Inf
    rank(A)20,843
    sprank(A)-rank(A)5,023
    null space dimension5,721
    full numerical rank?no
    singular value gap1.12841e+08

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

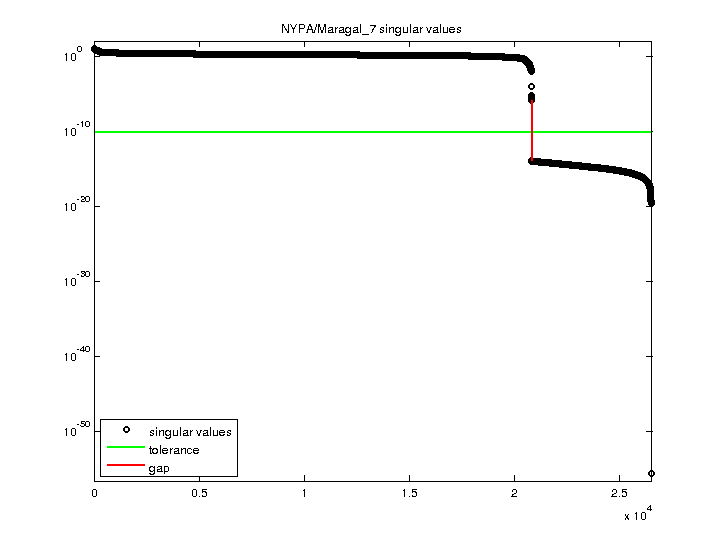

    NYPA/Maragal_7 svd

    For a description of the statistics displayed above, click here.
