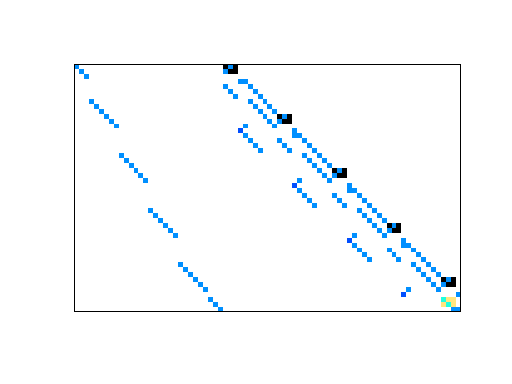

Matrix: LPnetlib/lp_sc50a

Description: Netlib LP problem sc50a: minimize c'*x, where Ax=b, lo<=x<=hi

LPnetlib/lp_sc50a graph
(bipartite graph drawing)

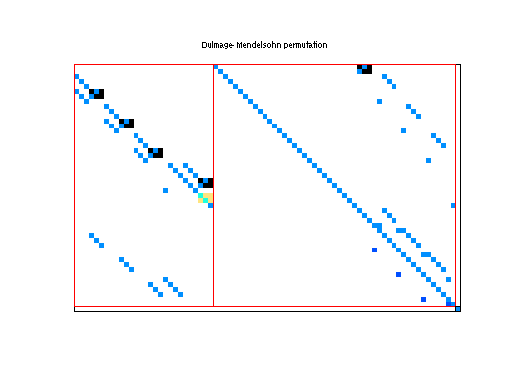

LPnetlib/lp_sc50a dmperm of LPnetlib/lp_sc50a

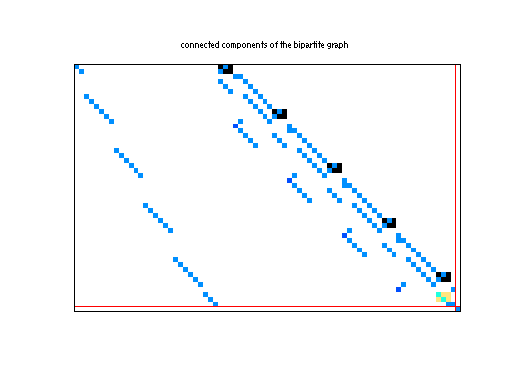

scc of LPnetlib/lp_sc50a

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: LPnetlib
  • Click here for a description of the LPnetlib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 KB. Use UFget(666) or UFget('LPnetlib/lp_sc50a') in MATLAB.
  • download in Matrix Market format, file size: 2 KB.
  • download in Rutherford/Boeing format, file size: 2 KB.

    Matrix properties
    number of rows50
    number of columns78
    nonzeros160
    structural full rank?yes
    structural rank50
    # of blocks from dmperm2
    # strongly connected comp.2
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorN. Gould
    editorD. Gay
    date1989
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 50-by-1
    cfull 78-by-1
    lofull 78-by-1
    hifull 78-by-1
    z0full 1-by-1

    Notes:

    A Netlib LP problem, in lp/data.  For more information
    send email to netlib@ornl.gov with the message:

    	 send index from lp
    	 send readme from lp/data

    The following are relevant excerpts from lp/data/readme (by David M. Gay):

    The column and nonzero counts in the PROBLEM SUMMARY TABLE below exclude
    slack and surplus columns and the right-hand side vector, but include
    the cost row.  We have omitted other free rows and all but the first
    right-hand side vector, as noted below.  The byte count is for the
    MPS compressed file; it includes a newline character at the end of each
    line.  These files start with a blank initial line intended to prevent
    mail programs from discarding any of the data.  The BR column indicates
    whether a problem has bounds or ranges:  B stands for "has bounds", R
    for "has ranges".

    The optimal value is from MINOS version 5.3 (of Sept. 1988)
    running on a VAX with default options.

                           PROBLEM SUMMARY TABLE

    Name       Rows   Cols   Nonzeros    Bytes  BR      Optimal Value
    SC50A        51     48      131       1615       -6.4575077059E+01

    Nick Gould supplied SC50A from the Harwell collection of LP test problems.
    When included in Netlib: Cost coefficients negated.

    Added to Netlib on  6 April 1989


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD509
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD238

    SVD-based statistics:
    norm(A)4.09351
    min(svd(A))0.331146
    cond(A)12.3616
    rank(A)50
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

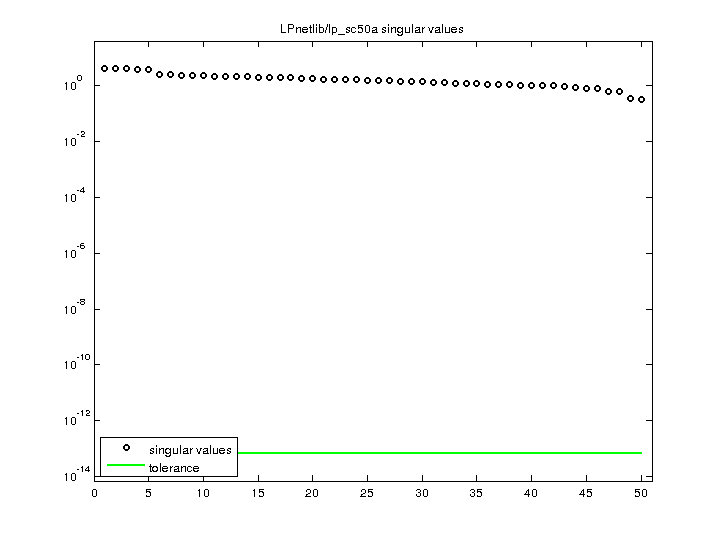

    LPnetlib/lp_sc50a svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
