Matrix: LPnetlib/lp_bore3d
Description: Netlib LP problem bore3d: minimize c'*x, where Ax=b, lo<=x<=hi
|
| (bipartite graph drawing) |
 |
 |
 |
| Matrix properties | |
| number of rows | 233 |
| number of columns | 334 |
| nonzeros | 1,448 |
| structural full rank? | no |
| structural rank | 232 |
| # of blocks from dmperm | 42 |
| # strongly connected comp. | 21 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 0% |
| numeric value symmetry | 0% |
| type | real |
| structure | rectangular |
| Cholesky candidate? | no |
| positive definite? | no |
| author | R. Fourer |
| editor | R. Fourer |
| date | |
| kind | linear programming problem |
| 2D/3D problem? | no |
| Additional fields | size and type |
| b | full 233-by-1 |
| c | full 334-by-1 |
| lo | full 334-by-1 |
| hi | full 334-by-1 |
| z0 | full 1-by-1 |
Notes:
A Netlib LP problem, in lp/data. For more information
send email to netlib@ornl.gov with the message:
send index from lp
send readme from lp/data
The following are relevant excerpts from lp/data/readme (by David M. Gay):
The column and nonzero counts in the PROBLEM SUMMARY TABLE below exclude
slack and surplus columns and the right-hand side vector, but include
the cost row. We have omitted other free rows and all but the first
right-hand side vector, as noted below. The byte count is for the
MPS compressed file; it includes a newline character at the end of each
line. These files start with a blank initial line intended to prevent
mail programs from discarding any of the data. The BR column indicates
whether a problem has bounds or ranges: B stands for "has bounds", R
for "has ranges". The BOUND-TYPE TABLE below shows the bound types
present in those problems that have bounds.
The optimal value is from MINOS version 5.3 (of Sept. 1988)
running on a VAX with default options.
PROBLEM SUMMARY TABLE
Name Rows Cols Nonzeros Bytes BR Optimal Value
BORE3D 234 315 1525 13160 B 1.3730803942E+03
BOUND-TYPE TABLE
BORE3D UP LO FX
Supplied by Bob Fourer.
Source: consulting.
Empty RHS section.
When included in Netlib: Extra free rows omitted.
| Ordering statistics: | result |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 6,487 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 3,168 |

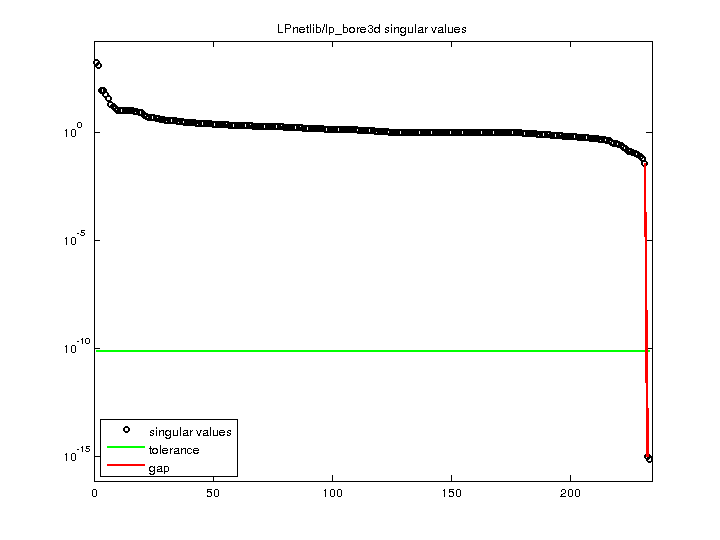

| SVD-based statistics: | |
| norm(A) | 1727.32 |
| min(svd(A)) | 7.38456e-16 |
| cond(A) | 2.3391e+18 |
| rank(A) | 231 |
| sprank(A)-rank(A) | 1 |
| null space dimension | 2 |
| full numerical rank? | no |
| singular value gap | 3.91825e+13 |
| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
