Matrix: Janna/Transport

Description: 3D finite element flow and transport

Janna/Transport graph
(undirected graph drawing)

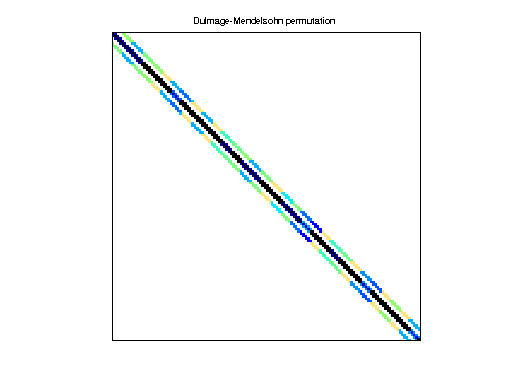

Janna/Transport dmperm of Janna/Transport

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Janna
  • Click here for a description of the Janna group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 109 MB. Use UFget(2649) or UFget('Janna/Transport') in MATLAB.
  • download in Matrix Market format, file size: 168 MB.
  • download in Rutherford/Boeing format, file size: 139 MB.

    Matrix properties
    number of rows1,602,111
    number of columns1,602,111
    nonzeros23,487,281
    structural full rank?yes
    structural rank1,602,111
    # of blocks from dmperm962
    # strongly connected comp.962
    explicit zero entries13,450
    nonzero pattern symmetrysymmetric
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorC. Janna, M. Ferronato, G. Pini
    editorT. Davis
    date2012
    kindstructural problem
    2D/3D problem?yes

    Notes:

    Authors: Carlo Janna, Massimiliano Ferronato, Giorgio Pini
    Matrix type: Unsymmetric
    # equations:       1,602,111
    # non-zeroes:     23,500,731

    Problem description: 3D Finite Element flow and transport

    The matrix Transport has been obtained by a FE tetrahedral
    discretization of a density driven coupled flow and transport.

    Further information can be found in the following papers:

    1) A. Mazzia, and M. Putti. High order Godunov mixed methods on
    tetrahedral meshes for density driven flow simulations in porous
    media. Journal of Computational Physics 208 (2005), pp. 154-174.

    2) M. Ferronato, C. Janna and G. Pini. A generalized Block FSAI
    preconditioner for unsymmetric indefinite matrices. Journal of
    Computational and Applied Mathematics (2012), submitted.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,105,250,223
    Cholesky flop count3.6e+13
    nnz(L+U), no partial pivoting, with AMD6,208,898,335
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD5,082,701,296
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD9,218,957,849

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 13450 explicit zero entries.

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
