Matrix: Janna/Geo_1438

Description: geomechanical model of earth crust with underground deformation

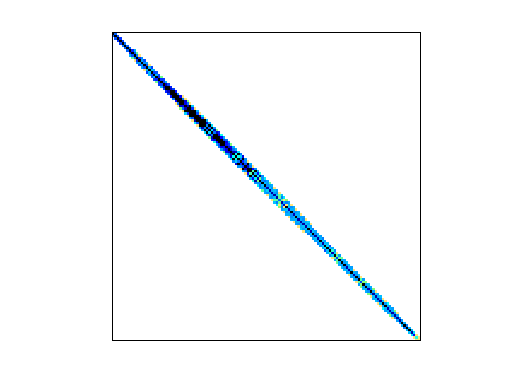

Janna/Geo_1438 graph
(undirected graph drawing)

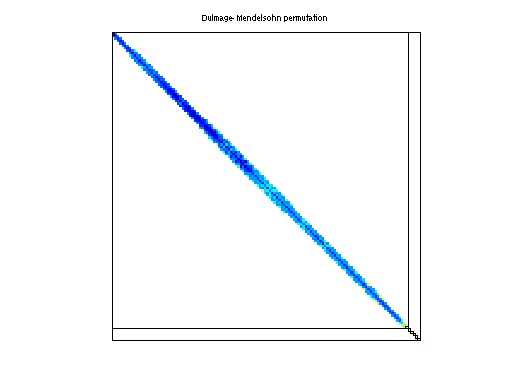

Janna/Geo_1438 dmperm of Janna/Geo_1438

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Janna
  • Click here for a description of the Janna group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 354 MB. Use UFget(2545) or UFget('Janna/Geo_1438') in MATLAB.
  • download in Matrix Market format, file size: 280 MB.
  • download in Rutherford/Boeing format, file size: 229 MB.

    Matrix properties
    number of rows1,437,960
    number of columns1,437,960
    nonzeros60,236,322
    structural full rank?yes
    structural rank1,437,960
    # of blocks from dmperm66,481
    # strongly connected comp.66,481
    explicit zero entries2,920,368
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorC. Janna, M. Ferronato
    editorT. Davis
    date2011
    kindstructural problem
    2D/3D problem?yes

    Notes:

    Authors: Carlo Janna and Massimiliano Ferronato

    Symmetric Positive Definite Matrix
    # equations:   1437960
    # non-zeroes: 63156690
    Problem description: Geomechanical problem

    The matrix Geo_1438 is obtained from a geomechanical problem
    discretizing a region of the earth crust subject to underground
    deformation. The computational domain is a box with an areal
    extent of 50 x 50 km and 10 km deep consisting of regularly
    shaped tetrahedral Finite Elements.  The problem arises from a
    3D discretization with three displacement unknowns associated to
    each node of the grid.  This matrix has been used as a test case
    in the following paper:

    1) C. Janna, M. Ferronato, G. Gambolati. "A Block FSAI-ILU
    parallel preconditioner for symmetric positive definite linear
    systems". SIAM Journal on Scientific Computing, 32, pp.
    2468-2484, 2010.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD6,297,700,169
    Cholesky flop count1.2e+14
    nnz(L+U), no partial pivoting, with AMD12,593,962,378
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD7,633,969,695
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD13,733,310,294

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 2920368 explicit zero entries.
