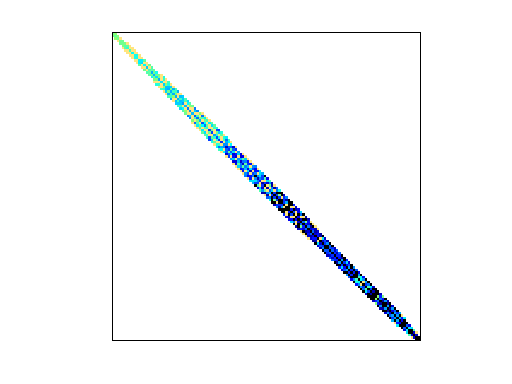

Matrix: Janna/Fault_639

Description: contact mechanics for model of a faulted gas reservoir

Janna/Fault_639 graph
(undirected graph drawing)

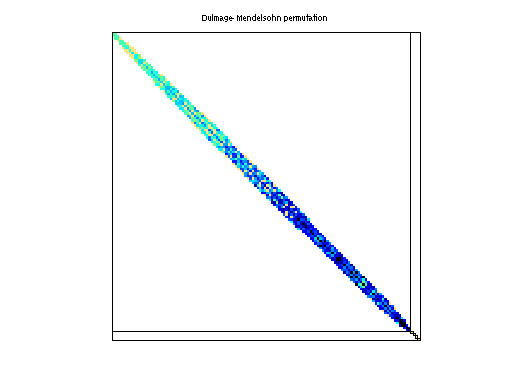

Janna/Fault_639 dmperm of Janna/Fault_639

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Janna
  • Click here for a description of the Janna group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 163 MB. Use UFget(2543) or UFget('Janna/Fault_639') in MATLAB.
  • download in Matrix Market format, file size: 129 MB.
  • download in Rutherford/Boeing format, file size: 103 MB.

    Matrix properties
    number of rows638,802
    number of columns638,802
    nonzeros27,245,944
    structural full rank?yes
    structural rank638,802
    # of blocks from dmperm21,880
    # strongly connected comp.21,880
    explicit zero entries1,368,620
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorC. Janna, M. Ferronato
    editorT. Davis
    date2011
    kindstructural problem
    2D/3D problem?yes

    Notes:

    Authors: Carlo Janna and Massimiliano Ferronato

    Symmetric Positive Definite Matrix
    # equations:  638802
    # non-zeroes: 28614564
    Problem description: contact mechanics

    The matrix Fault_639 is obtained from a structural problem
    discretizing a faulted gas reservoir with tetrahedral Finite
    Elements and triangular Interface Elements.  The Interface
    Elements are used with a Penalty formulation to simulate the
    faults behaviour.  The problem arises from a 3D discretization
    with three displacement unknowns associated to each node of the
    grid.  Some further information may be found in the following
    papers:

    1) M. Ferronato, G. Gambolati, C. Janna, P. Teatini. "Numerical
    modelling of regional faults in land subsidence prediction above
    gas/oil reservoirs", International Journal for Numerical and
    Analytical Methods in Geomechanics, 32, pp. 633-657, 2008.

    2) M. Ferronato, C. Janna, G. Gambolati. "Mixed constraint
    preconditioning in computational contact mechanics", Computer
    Methods in Applied Mechanics and Engineering, 197, pp.
    3922-3931, 2008.

    3) C. Janna, M. Ferronato, G. Gambolati. "Multilevel incomplete
    factorizations for the iterative solution of non-linear FE
    problems". International Journal for Numerical Methods in
    Engineering, 80, pp. 651-670, 2009.

    4) C. Janna, M. Ferronato, G. Gambolati. "A Block FSAI-ILU
    parallel preconditioner for symmetric positive definite linear
    systems". SIAM Journal on Scientific Computing, 32, pp.
    2468-2484, 2010.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD3,179,862,040
    Cholesky flop count6.4e+13
    nnz(L+U), no partial pivoting, with AMD6,359,085,278
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,950,893,717
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD6,902,951,841

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 1368620 explicit zero entries.
