Matrix properties
number of rows	19,020
number of columns	44,448
nonzeros	132,888
structural full rank?	yes
structural rank	19,020

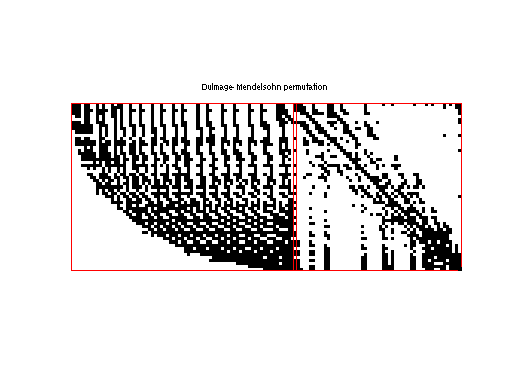

# of blocks from dmperm	81
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	0%
numeric value symmetry	0%
type	binary
structure	rectangular
Cholesky candidate?	no
positive definite?	no

author	S. Margulies
editor	J.-G. Dumas
date	2008
kind	combinatorial problem
2D/3D problem?	no

Notes:

Combinatorial optimization as polynomial eqns, Susan Margulies, UC Davis
From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

http://arxiv.org/abs/0706.0578

Expressing Combinatorial Optimization Problems by Systems of Polynomial
Equations and the Nullstellensatz

Authors: J.A. De Loera, J. Lee, Susan Margulies, S. Onn

(Submitted on 5 Jun 2007)

Abstract: Systems of polynomial equations over the complex or real
numbers can be used to model combinatorial problems. In this way, a
combinatorial problem is feasible (e.g. a graph is 3-colorable,
hamiltonian, etc.) if and only if a related system of polynomial
equations has a solution. In the first part of this paper, we construct
new polynomial encodings for the problems of finding in a graph its
longest cycle, the largest planar subgraph, the edge-chromatic number,
or the largest k-colorable subgraph.  For an infeasible polynomial
system, the (complex) Hilbert Nullstellensatz gives a certificate that
the associated combinatorial problem is infeasible. Thus, unless P =
NP, there must exist an infinite sequence of infeasible instances of
each hard combinatorial problem for which the minimum degree of a
Hilbert Nullstellensatz certificate of the associated polynomial system
grows.  We show that the minimum-degree of a Nullstellensatz
certificate for the non-existence of a stable set of size greater than
the stability number of the graph is the stability number of the graph.
Moreover, such a certificate contains at least one term per stable set
of G. In contrast, for non-3- colorability, we found only graphs with
Nullstellensatz certificates of degree four.

Filename in JGD collection: Margulies/cat_ears_4_4.sms

Ordering statistics:	result
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	194,279,222
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	35,625,966

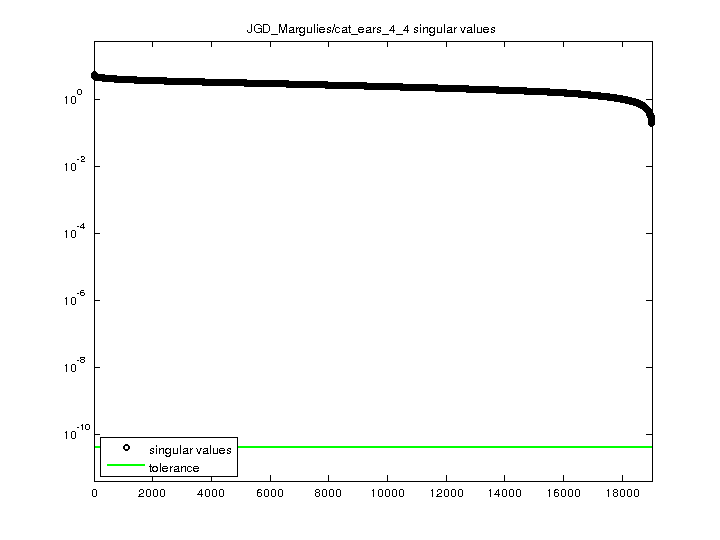

SVD-based statistics:
norm(A)	5.54709
min(svd(A))	0.19041
cond(A)	29.1323
rank(A)	19,020
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
status:	ok

For a description of the statistics displayed above, click here.
