Matrix: Hollinger/mark3jac040

Description: Jacobian from MULTIMOD Mark3, oldstack 040

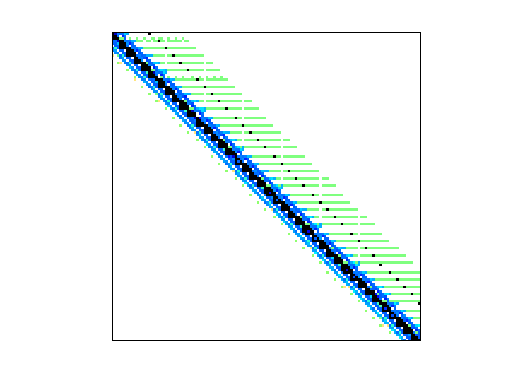

Hollinger/mark3jac040 graph Hollinger/mark3jac040 graph
(bipartite graph drawing) (graph drawing of A+A')

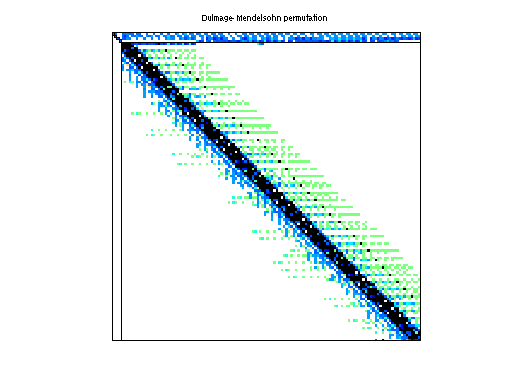

Hollinger/mark3jac040 dmperm of Hollinger/mark3jac040

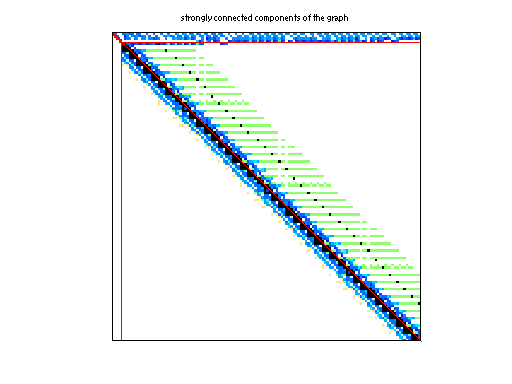

scc of Hollinger/mark3jac040

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Hollinger
  • Click here for a description of the Hollinger group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 760 KB. Use UFget(582) or UFget('Hollinger/mark3jac040') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 953 KB.

    Matrix properties
    number of rows18,289
    number of columns18,289
    nonzeros106,803
    structural full rank?yes
    structural rank18,289
    # of blocks from dmperm641
    # strongly connected comp.641
    explicit zero entries6,632
    nonzero pattern symmetry 7%
    numeric value symmetry 1%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorP. Hollinger
    editorT. Davis
    date2001
    kindeconomic problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD2,834,641
    Cholesky flop count1.8e+09
    nnz(L+U), no partial pivoting, with AMD5,650,993
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,913,346
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD6,558,876

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 6632 explicit zero entries.

    SVD-based statistics:
    norm(A)1.27818e+07
    min(svd(A))1.8822e-07
    cond(A)6.79086e+13
    rank(A)17,532
    sprank(A)-rank(A)757
    null space dimension757
    full numerical rank?no
    singular value gap1.0028

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Hollinger/mark3jac040 svd

    For a description of the statistics displayed above, click here.
