Matrix: Hollinger/jan99jac020sc

Description: Jacobian from Bank of Canada 'jan99' model, oldstack 020, with scaling

Hollinger/jan99jac020sc graph Hollinger/jan99jac020sc graph
(bipartite graph drawing) (graph drawing of A+A')

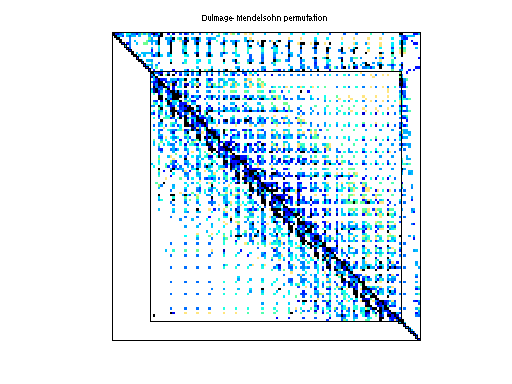

Hollinger/jan99jac020sc dmperm of Hollinger/jan99jac020sc

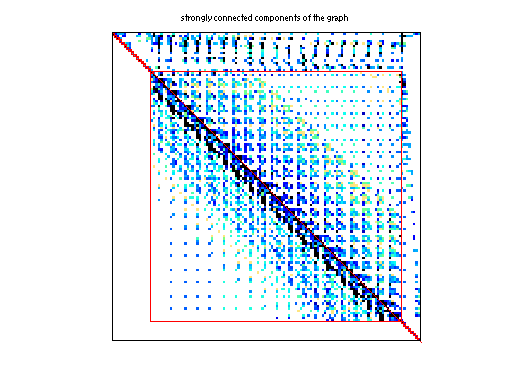

scc of Hollinger/jan99jac020sc

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Hollinger
  • Click here for a description of the Hollinger group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 236 KB. Use UFget(569) or UFget('Hollinger/jan99jac020sc') in MATLAB.
  • download in Matrix Market format, file size: 292 KB.
  • download in Rutherford/Boeing format, file size: 270 KB.

    Matrix properties
    number of rows6,774
    number of columns6,774
    nonzeros33,744
    structural full rank?yes
    structural rank6,774
    # of blocks from dmperm1,311
    # strongly connected comp.1,291
    explicit zero entries4,948
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorP. Hollinger
    editorT. Davis
    date2001
    kindeconomic problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 6774-by-1
    xfull 6774-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD198,431
    Cholesky flop count3.7e+07
    nnz(L+U), no partial pivoting, with AMD390,088
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD233,673
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD603,053

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 4948 explicit zero entries.

    SVD-based statistics:
    norm(A)256.105
    min(svd(A))9.55002e-05
    cond(A)2.68172e+06
    rank(A)6,774
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Hollinger/jan99jac020sc svd

    For a description of the statistics displayed above, click here.
