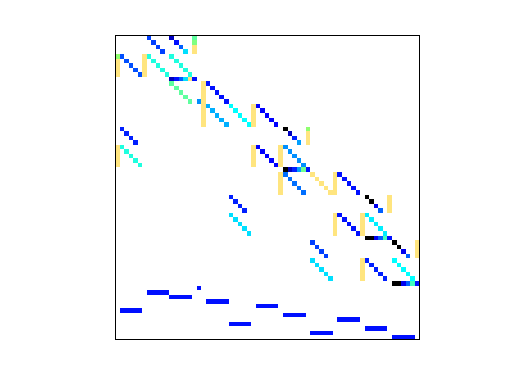

Matrix: HB/west0067

Description: U CAVETT PROBLEM WITH 5 COMPONENTS ( CHEM. ENG. FROM WESTERBERG )

HB/west0067 graph HB/west0067 graph
(bipartite graph drawing) (graph drawing of A+A')

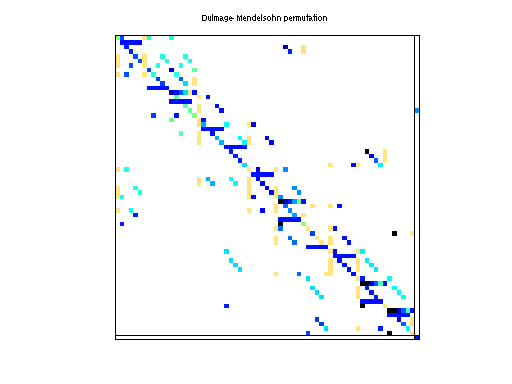

HB/west0067 dmperm of HB/west0067

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 KB. Use UFget(262) or UFget('HB/west0067') in MATLAB.
  • download in Matrix Market format, file size: 2 KB.
  • download in Rutherford/Boeing format, file size: 2 KB.

    Matrix properties
    number of rows67
    number of columns67
    nonzeros294
    structural full rank?yes
    structural rank67
    # of blocks from dmperm2
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 3%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. Westerberg
    editorI. Duff, R. Grimes, J. Lewis
    date1983
    kindchemical process simulation problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD997
    Cholesky flop count1.9e+04
    nnz(L+U), no partial pivoting, with AMD1,927
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD460
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD905

    SVD-based statistics:
    norm(A)4.06071
    min(svd(A))0.0311841
    cond(A)130.217
    rank(A)67
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

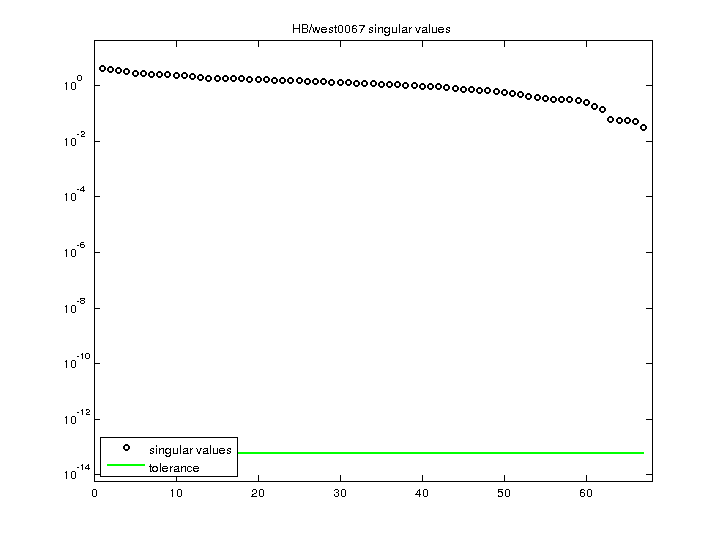

    HB/west0067 svd

    For a description of the statistics displayed above, click here.
