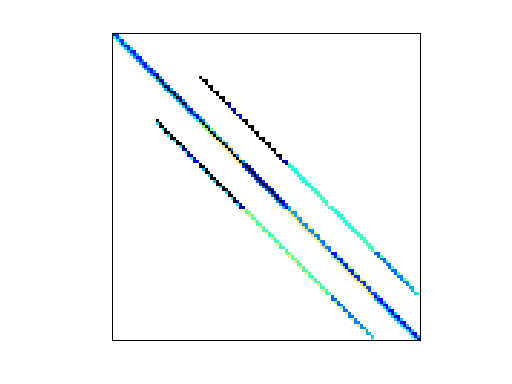

Matrix: HB/pores_3
Description: UNSYMMETRIC MATRIX FROM PORES
|
|
| (bipartite graph drawing) | (graph drawing of A+A') |
 |
 |
| Matrix properties | |
| number of rows | 532 |
| number of columns | 532 |
| nonzeros | 3,474 |
| structural full rank? | yes |
| structural rank | 532 |

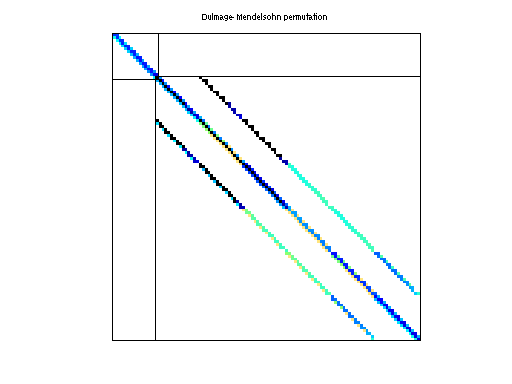

| # of blocks from dmperm | 2 |
| # strongly connected comp. | 2 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 74% |
| numeric value symmetry | 31% |
| type | real |
| structure | unsymmetric |
| Cholesky candidate? | no |
| positive definite? | no |
| author | J. Appleyard |
| editor | I. Duff, R. Grimes, J. Lewis |
| date | 1980 |
| kind | computational fluid dynamics problem |
| 2D/3D problem? | yes |
| Ordering statistics: | result |
| nnz(chol(P*(A+A'+s*I)*P')) with AMD | 4,910 |
| Cholesky flop count | 5.5e+04 |
| nnz(L+U), no partial pivoting, with AMD | 9,288 |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 5,640 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 8,541 |
| SVD-based statistics: | |
| norm(A) | 149923 |
| min(svd(A)) | 0.267339 |
| cond(A) | 560797 |
| rank(A) | 532 |
| sprank(A)-rank(A) | 0 |
| null space dimension | 0 |
| full numerical rank? | yes |

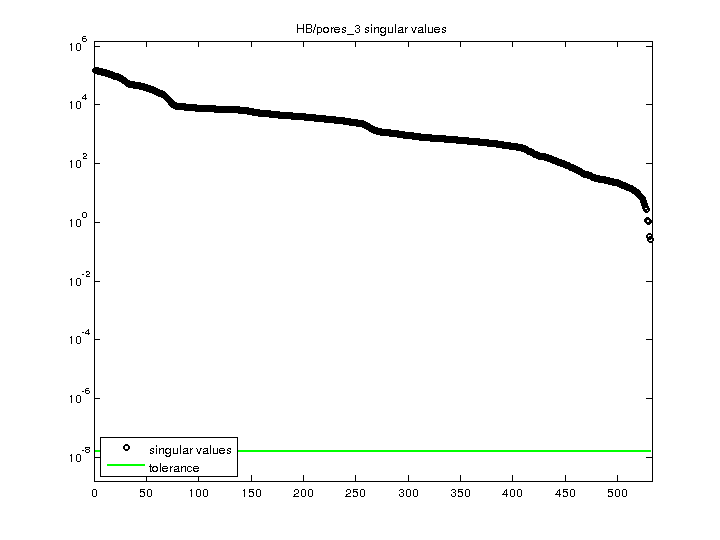

| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |
For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.
Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
