Matrix properties
number of rows	362
number of columns	362
nonzeros	5,786
structural full rank?	yes
structural rank	362
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	yes
positive definite?	yes

author	J. Lewis
editor	I. Duff, R. Grimes, J. Lewis
date	1975
kind	2D/3D problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	8,060
Cholesky flop count	2.2e+05
nnz(L+U), no partial pivoting, with AMD	15,758
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	9,421
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	19,113

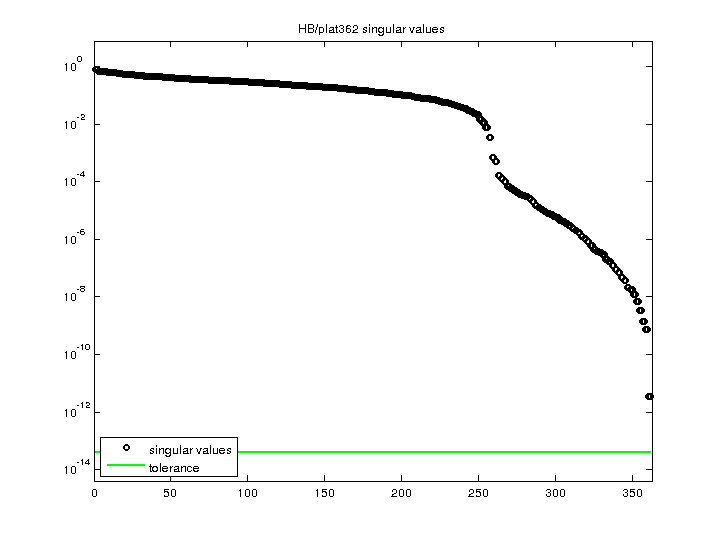

SVD-based statistics:
norm(A)	0.774279
min(svd(A))	3.55464e-12
cond(A)	2.17822e+11
rank(A)	362
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.
