Matrix properties
number of rows	3,025
number of columns	3,025
nonzeros	20,833
structural full rank?	yes
structural rank	3,025
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	binary
structure	symmetric
Cholesky candidate?	yes
positive definite?	no

author	A. George
editor	I. Duff, R. Grimes, J. Lewis
date	1978
kind	thermal problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	70,614
Cholesky flop count	2.9e+06
nnz(L+U), no partial pivoting, with AMD	138,203
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	106,269
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	196,194

SVD-based statistics:
norm(A)	6.98959
min(svd(A))	0.000103046
cond(A)	67830.1
rank(A)	3,025
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

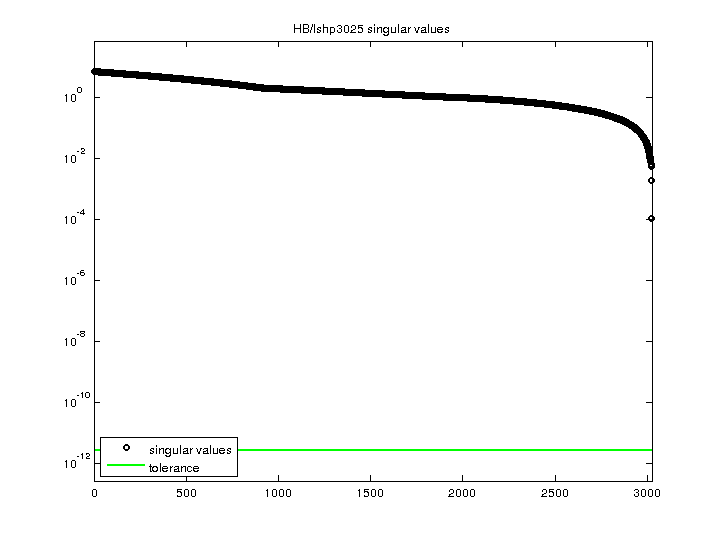

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

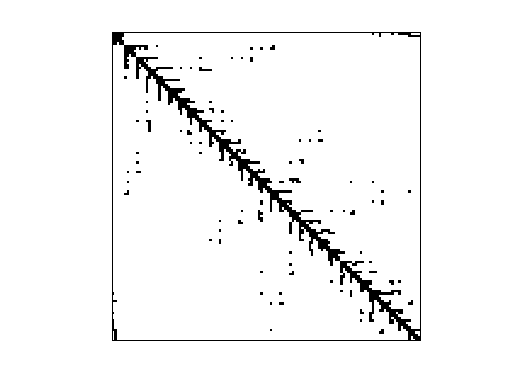

Matrix pictures by cspy, a MATLAB function in the CSparse package.
