Matrix properties
number of rows	2,233
number of columns	2,233
nonzeros	15,337
structural full rank?	yes
structural rank	2,233
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	binary
structure	symmetric
Cholesky candidate?	yes
positive definite?	no

author	A. George
editor	I. Duff, R. Grimes, J. Lewis
date	1978
kind	thermal problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	48,363
Cholesky flop count	1.7e+06
nnz(L+U), no partial pivoting, with AMD	94,493
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	68,464
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	127,048

SVD-based statistics:
norm(A)	6.98597
min(svd(A))	0.000848198
cond(A)	8236.25
rank(A)	2,233
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

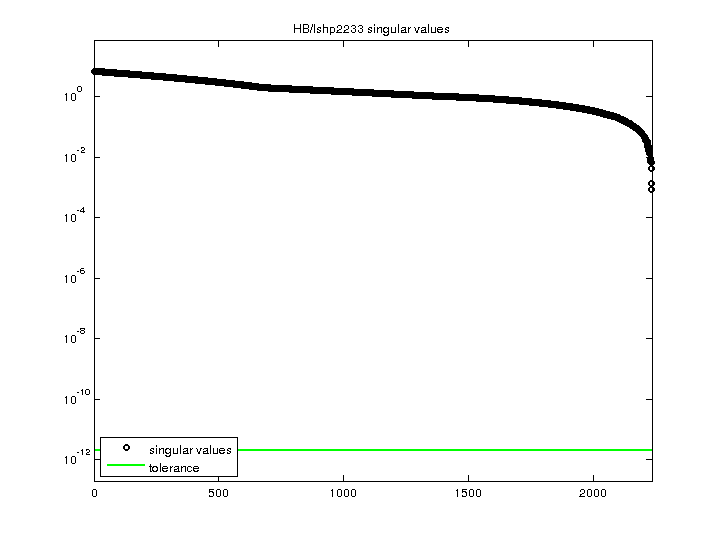

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok

For a description of the statistics displayed above, click here.

Maintained by Tim Davis, last updated 12-Mar-2014.

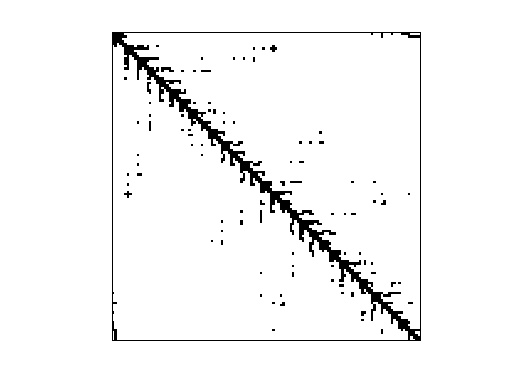

Matrix pictures by cspy, a MATLAB function in the CSparse package.
Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
