Matrix: HB/cegb3306

Description: FINITE ELEMENT FRAMEWORK PROBLEM, ESSENTIALLY IN TWO DIMENSIONS

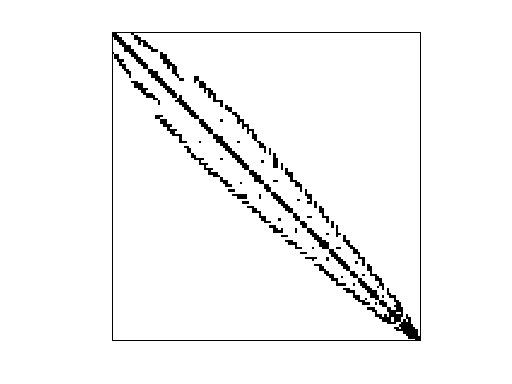

HB/cegb3306 graph
(undirected graph drawing)

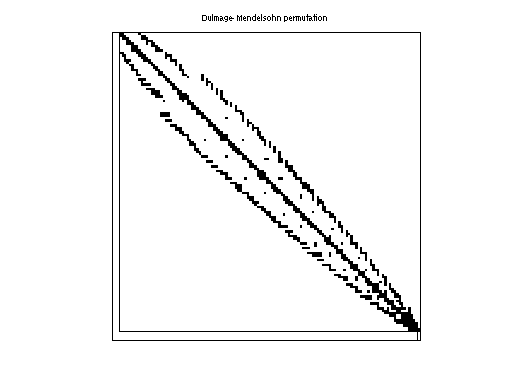

HB/cegb3306 dmperm of HB/cegb3306

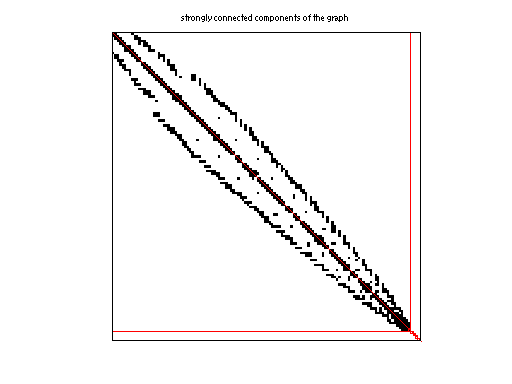

scc of HB/cegb3306

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 25 KB. Use UFget(1176) or UFget('HB/cegb3306') in MATLAB.
  • download in Matrix Market format, file size: 77 KB.
  • download in Rutherford/Boeing format, file size: 30 KB.

    Matrix properties
    number of rows3,306
    number of columns3,306
    nonzeros74,916
    structural full rank?no
    structural rank3,222
    # of blocks from dmperm3
    # strongly connected comp.85
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. Donovan
    editorI. Duff, R. Grimes, J. Lewis
    date1980
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD67,989
    Cholesky flop count2.0e+06
    nnz(L+U), no partial pivoting, with AMD132,672
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD247,881
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD489,657

    SVD-based statistics:
    norm(A)36.0403
    min(svd(A))0
    cond(A)Inf
    rank(A)537
    sprank(A)-rank(A)2,685
    null space dimension2,769
    full numerical rank?no
    singular value gap3.54335e+11

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

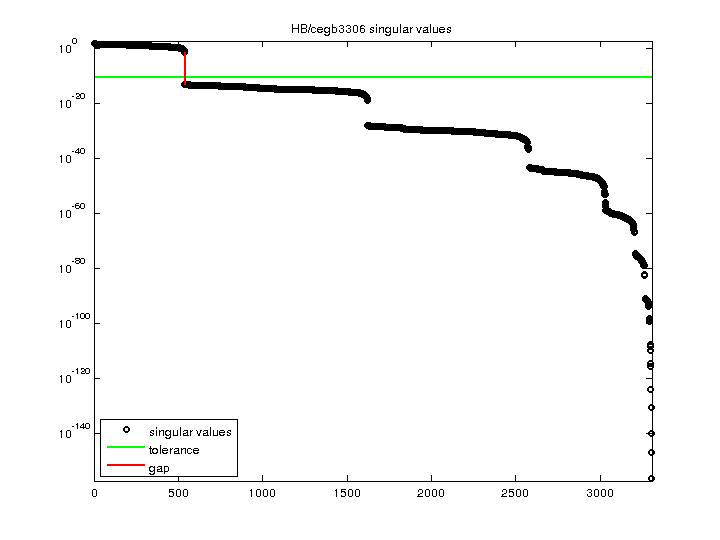

    HB/cegb3306 svd

    For a description of the statistics displayed above, click here.
