Matrix: HB/ash958
Description: UNSYMMETRIC OVERDETERMINED PATTERN OF U.K. SURVEY. ASHKENAZI,1974
![]() |
| (bipartite graph drawing) |
![]() |
| Matrix properties | |
| number of rows | 958 |
| number of columns | 292 |
| nonzeros | 1,916 |
| structural full rank? | yes |
| structural rank | 292 |
| # of blocks from dmperm | 1 |
| # strongly connected comp. | 1 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 0% |
| numeric value symmetry | 0% |
| type | binary |
| structure | rectangular |
| Cholesky candidate? | no |
| positive definite? | no |
| author | V. Askenazi |
| editor | A. Curtis, I. Duff, J. Reid |
| date | 1974 |
| kind | least squares problem |
| 2D/3D problem? | no |
| Ordering statistics: | result |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 31,345 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 2,503 |
| SVD-based statistics: | |
| norm(A) | 4.23828 |
| min(svd(A)) | 1.3239 |
| cond(A) | 3.20136 |
| rank(A) | 292 |
| sprank(A)-rank(A) | 0 |
| null space dimension | 0 |
| full numerical rank? | yes |
| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |

For a description of the statistics displayed above, click here.
Maintained by Tim Davis, last updated 12-Mar-2014.

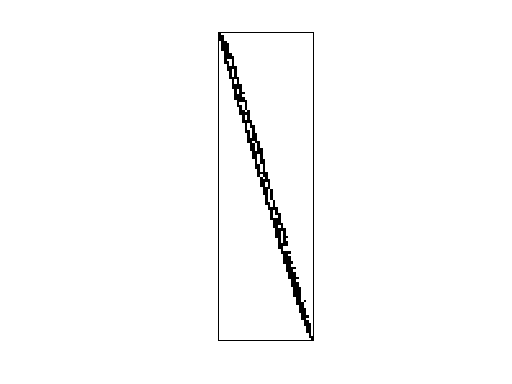

Matrix pictures by cspy, a MATLAB function in the CSparse package.
