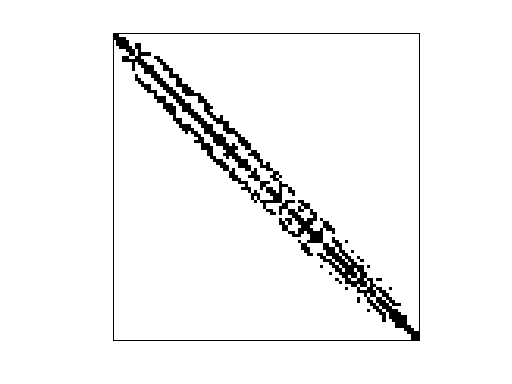

Matrix: HB/ash292
Description: SYMMETRIC PATTERN OF NORMAL MATRIX OF U.K. SURVEY. ASHKENAZI, 1974
(undirected graph drawing) |
Matrix properties | |
number of rows | 292 |
number of columns | 292 |
nonzeros | 2,208 |
structural full rank? | yes |
structural rank | 292 |
# of blocks from dmperm | 1 |
# strongly connected comp. | 1 |
explicit zero entries | 0 |
nonzero pattern symmetry | symmetric |
numeric value symmetry | symmetric |
type | binary |
structure | symmetric |
Cholesky candidate? | yes |
positive definite? | no |
author | V. Askenazi |
editor | A. Curtis, I. Duff, J. Reid |
date | 1974 |
kind | least squares problem |
2D/3D problem? | no |
Ordering statistics: | result |
nnz(chol(P*(A+A'+s*I)*P')) with AMD | 2,496 |
Cholesky flop count | 2.5e+04 |
nnz(L+U), no partial pivoting, with AMD | 4,700 |
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 3,251 |
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 6,186 |

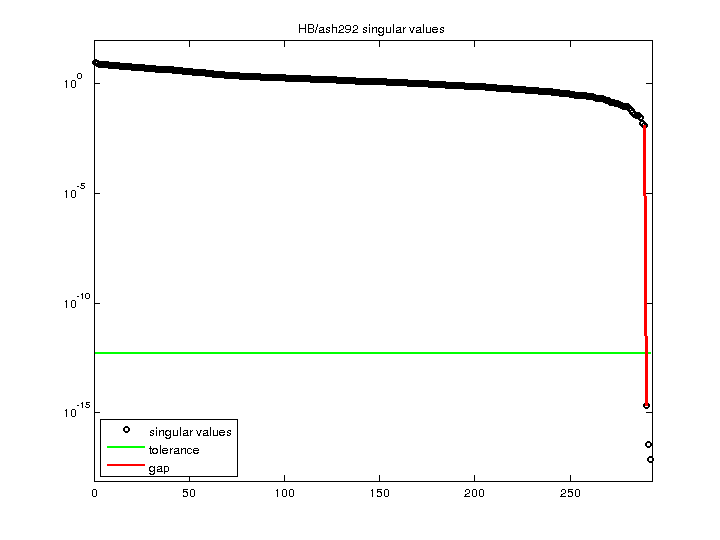

SVD-based statistics: | |
norm(A) | 9.15222 |
min(svd(A)) | 7.7173e-18 |
cond(A) | 1.18594e+18 |
rank(A) | 289 |
sprank(A)-rank(A) | 3 |
null space dimension | 3 |
full numerical rank? | no |
singular value gap | 5.98684e+12 |
singular values (MAT file): | click here |
SVD method used: | s = svd (full (A)) ; |
status: | ok |
