Matrix: GHS_psdef/wathen120

Description: Gould,Higham,Scott: matrix from Andy Wathen, Oxford Univ.

GHS_psdef/wathen120 graph
(undirected graph drawing)

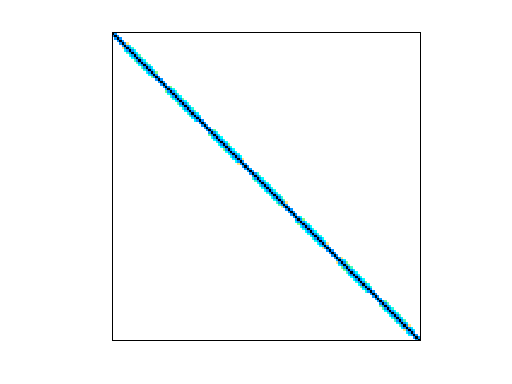

GHS_psdef/wathen120

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: GHS_psdef
  • Click here for a description of the GHS_psdef group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 MB. Use UFget(1289) or UFget('GHS_psdef/wathen120') in MATLAB.
  • download in Matrix Market format, file size: 3 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows36,441
    number of columns36,441
    nonzeros565,761
    structural full rank?yes
    structural rank36,441
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorA. Wathen
    editorN. Gould, Y. Hu, J. Scott
    date2004
    kindrandom 2D/3D problem
    2D/3D problem?yes

    Notes:

    A = gallery('wathen',100,120) ; % (in MATLAB)
    To initialize the MATLAB random number generator to replicate
    this matrix, first do the following:
    rand('state',0); A = gallery('wathen',100,100)
    and then generate this matrix using the 100,120 arguments above.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD1,845,324
    Cholesky flop count2.5e+08
    nnz(L+U), no partial pivoting, with AMD3,654,207
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD3,750,470
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD8,902,766

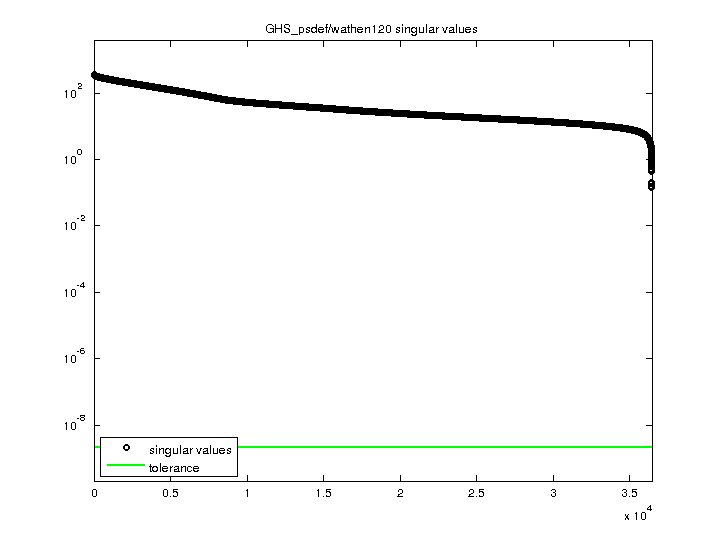

    SVD-based statistics:
    norm(A)369.374
    min(svd(A))0.143337
    cond(A)2576.96
    rank(A)36,441
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

    GHS_psdef/wathen120 svd
