Matrix: GHS_psdef/srb1

Description: Gould, Hu, & Scott: from Christian Damhaug

GHS_psdef/srb1 graph
(undirected graph drawing)


GHS_psdef/srb1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: GHS_psdef
  • Click here for a description of the GHS_psdef group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 764 KB. Use UFget(1282) or UFget('GHS_psdef/srb1') in MATLAB.
  • download in Matrix Market format, file size: 3 MB.
  • download in Rutherford/Boeing format, file size: 761 KB.

    Matrix properties
    number of rows54,924
    number of columns54,924
    nonzeros2,962,152
    structural full rank?yes
    structural rank54,924
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorC. Damhaug
    editorN. Gould, Y. Hu, J. Scott
    date2004
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD9,801,174
    Cholesky flop count3.0e+09
    nnz(L+U), no partial pivoting, with AMD19,547,424
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD18,591,978
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD36,881,058

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

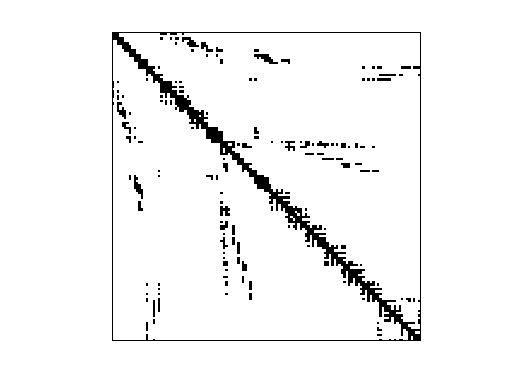

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
