Matrix: GHS_psdef/minsurfo

Description: Gould, Hu, & Scott: minimum surface problem (CUTEr)

GHS_psdef/minsurfo graph
(undirected graph drawing)

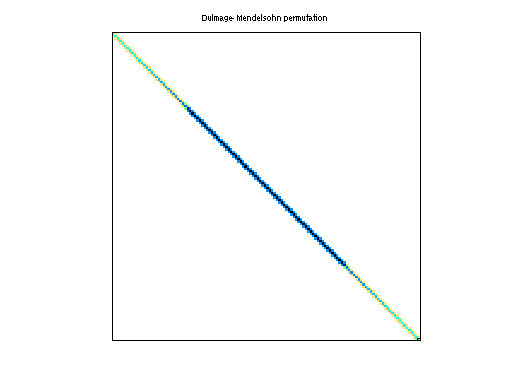

GHS_psdef/minsurfo dmperm of GHS_psdef/minsurfo

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: GHS_psdef
  • Click here for a description of the GHS_psdef group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 368 KB. Use UFget(1313) or UFget('GHS_psdef/minsurfo') in MATLAB.
  • download in Matrix Market format, file size: 469 KB.
  • download in Rutherford/Boeing format, file size: 329 KB.

    Matrix properties
    number of rows40,806
    number of columns40,806
    nonzeros203,622
    structural full rank?yes
    structural rank40,806
    # of blocks from dmperm3
    # strongly connected comp.3
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorE. Dolan, J. More'
    editorN. Gould
    date2000
    kindoptimization problem
    2D/3D problem?no

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD1,086,577
    Cholesky flop count1.2e+08
    nnz(L+U), no partial pivoting, with AMD2,132,348
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD2,085,965
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,819,669

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
